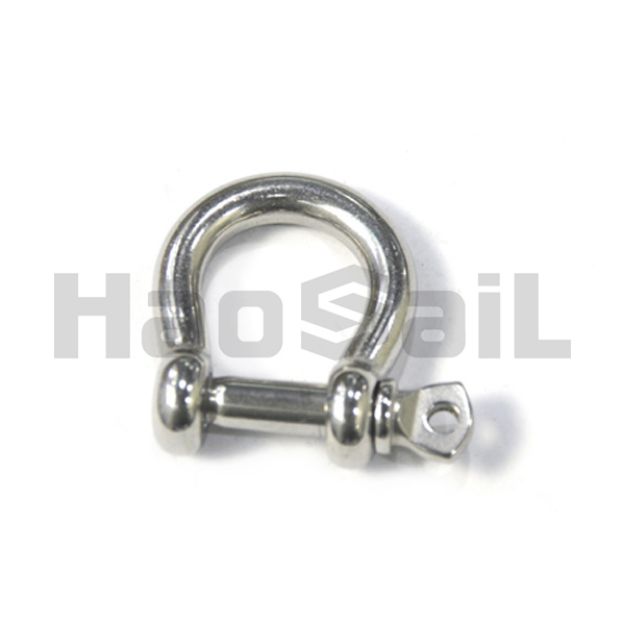

Bow Shackle with Collar Pin

•Material: Stainless steel 304 or 316
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 6:1; 4:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 4.01.06

Overview
Contact Us

Bow Shackle with Collar Pin

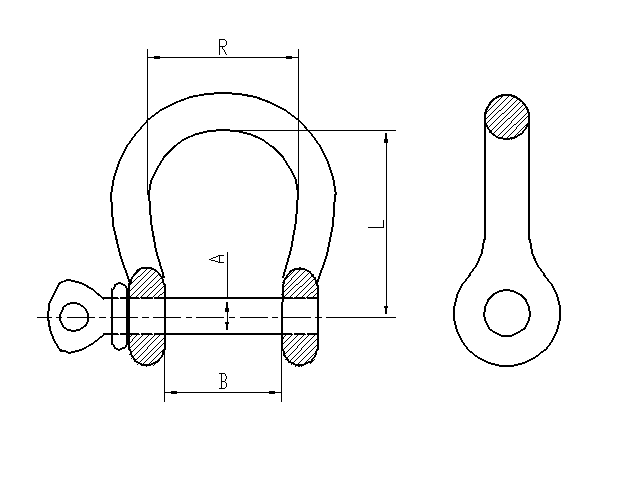

Stock no.	Size(mm)	A(mm)	B(mm)	R(mm)	L(mm)	BL(lbs)
HS4010601	3	3	6	9	12	400
HS4010602	4	4	8	12	16	550
HS4010603	5	5	10	15	20	1200
HS4010604	6	6	12	18	24	1700
HS4010605	8	8	16	24	32	2500
HS4010606	10	10	20	30	40	4500
HS4010607	12	12	24	36	48	6000
HS4010608	13	13	26	39	52	6500
HS4010609	14	14	28	42	56	7000
HS4010610	16	16	32	48	64	10000
HS4010611	19	19	38	57	76	15000
HS4010612	22	22	44	66	88	19000
HS4010613	25	50	50	75	100	23000
HS4010614	28	28	56	84	112	26000
HS4010615	32	32	64	96	128	38000
