Picture of Long D Shackle with Locking Pin

Long D Shackle with Locking Pin

•Material: Stainless steel 304 or 316
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 6:1; 4:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.
SKU: 4.01.12

Long D Shackle with Locking Pin

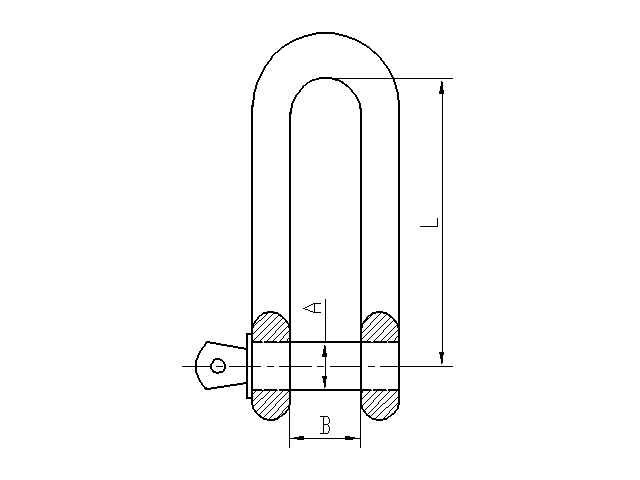

Stock no.Size(mm)A(mm)B(mm)L(mm)BL(lbs)
HS401120144 4 4500
HS401120255 5 51000
HS401120366 6 61700
HS401120488 8 82500
HS40112051010 10 103500
HS40112061212 12 125400
