Oversize Anchor Shackle

•Material: Stainless steel 304 or 316
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 6:1; 4:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.
SKU: 4.01.08

Oversize Anchor Shackle

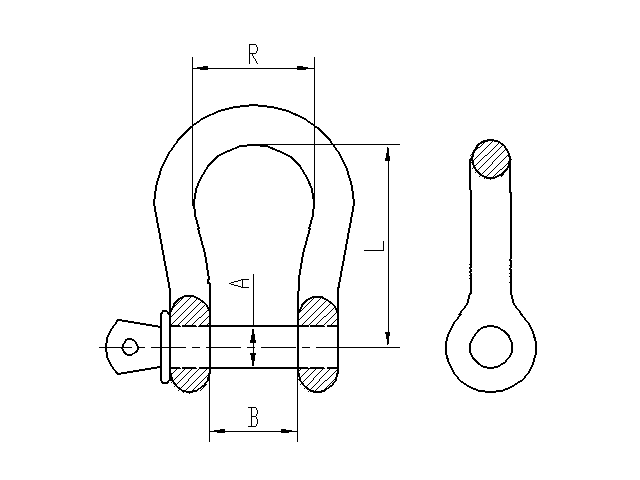

Stock no.Size(in)A(mm)B(mm)R(mm)L(mm)BL(lbs)
HS40108013/166.25 9.52 15.20 251500
HS40108021/47.80 11.90 19.80 312200
HS40108035/169.40 13.50 21.30 363000
HS40108043/811.00 15.90 26.00 424800
HS40108057/1612.50 20.60 29.50 497000
HS40108061/215.70 20.60 33.00 558700
HS40108075/819.00 27.00 49.90 6812000
HS40108083/422.20 30.20 51.00 8416000
HS40108097/825.40 38.10 58.00 10019000
HS4010810128.50 41.30 68.00 11228000
