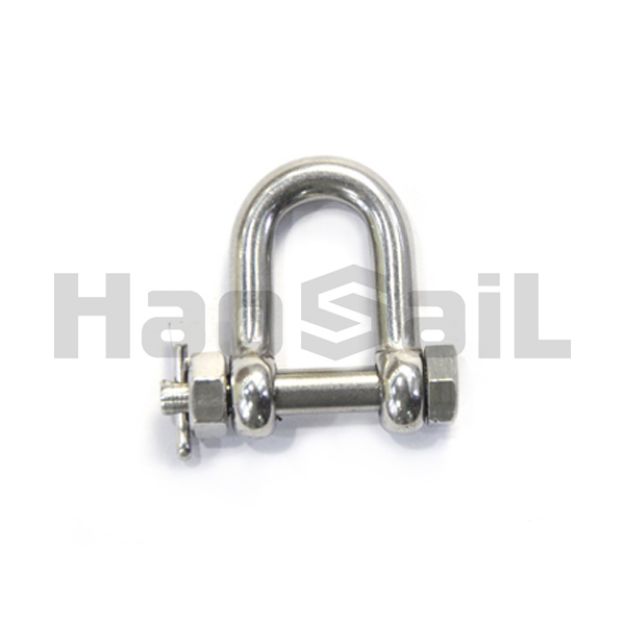

Oversize Chain Shackle with Nut and Cotter Pin

•Material: Stainless steel 304 or 316
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 6:1; 4:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.
SKU: 4.01.10

Oversize Chain Shackle with Nut and Cotter Pin

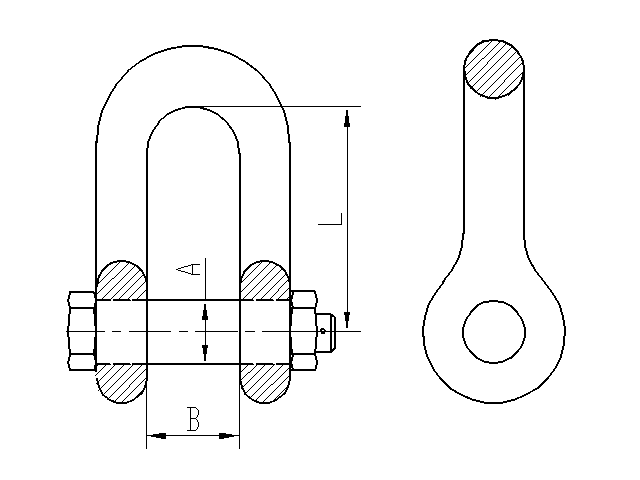

Stock no.Size(in)A(mm)B(mm)L(mm)BL(lbs)
HS40110013/166.25 9.5225.001500
HS40110021/47.80 11.9031.002400
HS40110035/169.50 13.5036.504100
HS40110043/811.00 15.9042.004900
HS40110057/1612.50 20.6049.007300
HS40110061/215.70 20.6055.609900
HS40110075/819.00 27.0068.0013000
HS40110083/422.20 30.2084.0018000
HS40110097/825.4038.1010020000
HS4011010128.50 41.30 11223000
