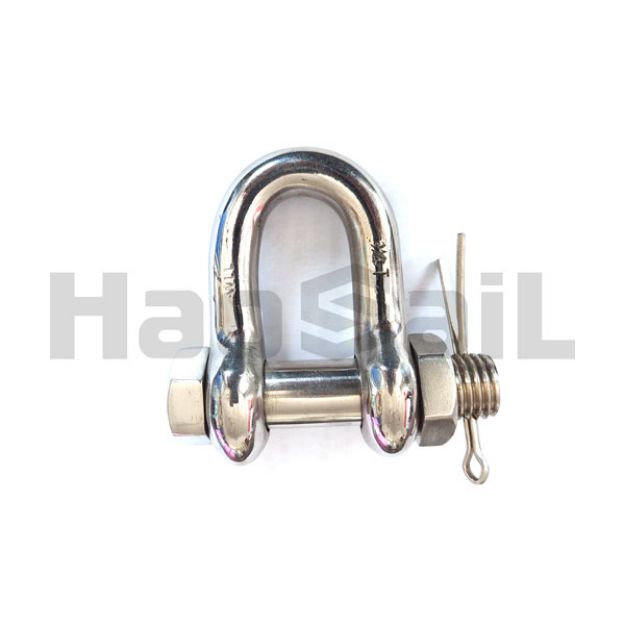

Picture of Wide D Shackle with Nut and Cotter Pin

Wide D Shackle with Nut and Cotter Pin

•Material: Stainless steel 304 or 316
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 4:1/ 6:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.
SKU: 4.01.15

Wide D Shackle with Nut and Cotter Pin

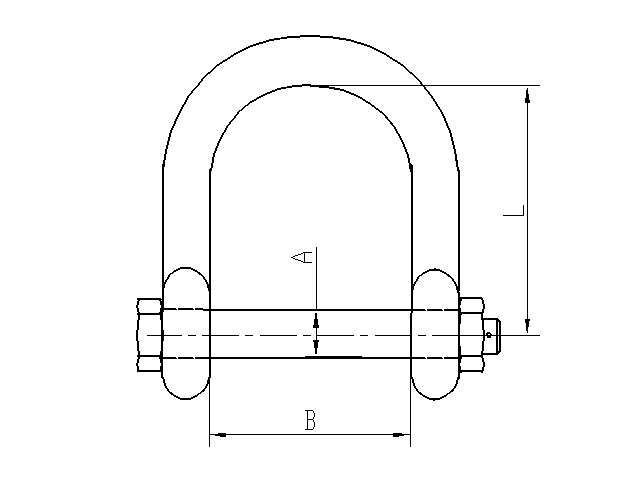

Stock no.Size(mm)A(mm)B(mm)L(mm)BL(lbs)
HS401150198 36 502800
HS40115021212 55 604000
