Oversize Anchor Shackle with Nut and Cotter Pin

•Material: Stainless steel 304 or 316
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 6:1; 4:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.
SKU: 4.01.09

Oversize Anchor Shackle with Nut and Cotter Pin

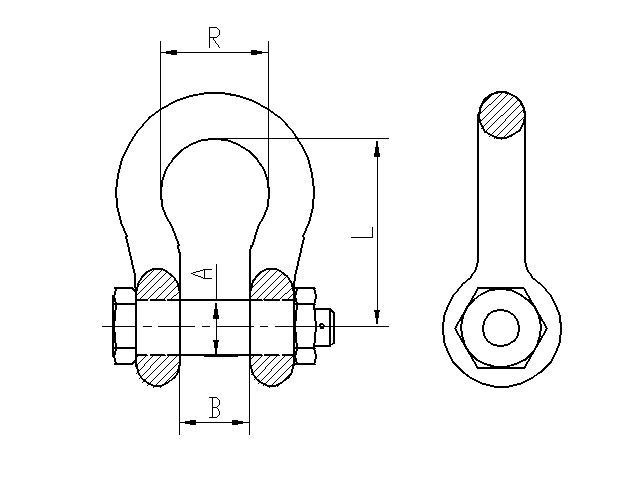

Stock no.Size(in)A(mm)B(mm)R(mm)L(mm)BL(lbs)
HS40109013/166.359.5215.225.001500
HS40109021/47.9311.9019.831.002200
HS40109035/169.5213.5021.336.503000
HS40109043/811.1115.902642.004800
HS40109057/1612.7020.6029.549.007000
HS40109061/215.8720.603355.608700
HS40109075/819.0527.0049.968.0012000
HS40109083/422.2230.205184.0016000
HS40109097/825.4038.105810019000
HS4010910128.57 41.30 68.00 11228000
