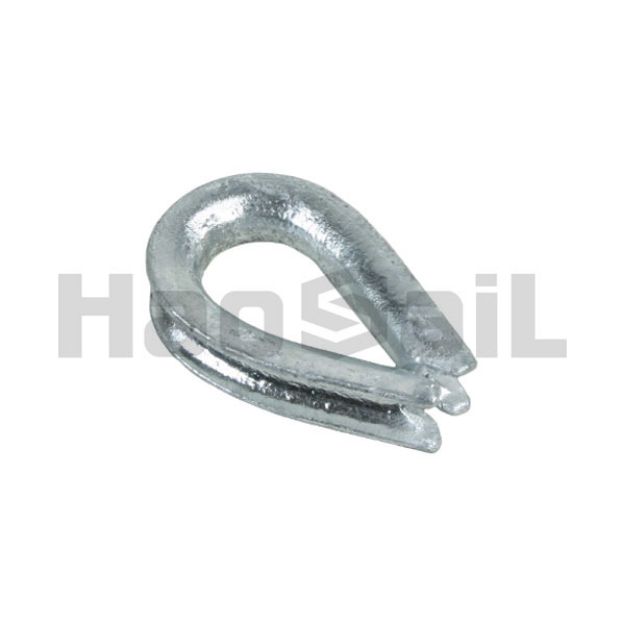

DIN3090 Wire Rope Thimble

•Material: Carbon steel
•Production: Stamping
•Surface treatment:Electric galvanized or Hot dip galvanized
•Conform to Germany standard DIN3090 requirement

SKU: 2.05.07

Overview
Contact Us

DIN3090 Wire Rope Thimble

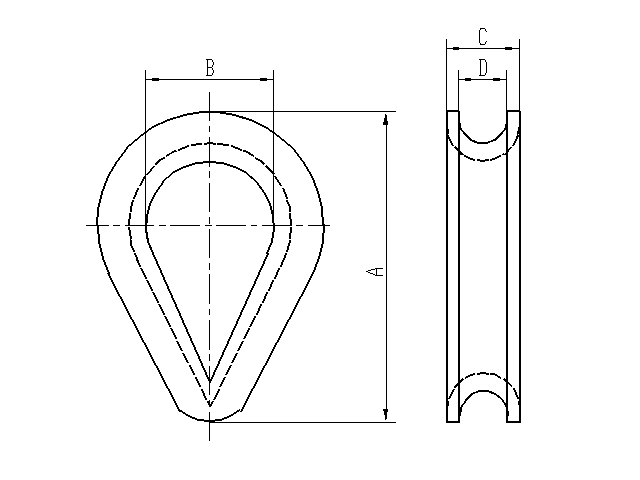

Stock no.	Size ( mm )	Dimensions(mm)				Weight ( kg )
Stock no.	Size ( mm )	A	B	C	D	Weight ( kg )
HS2050701	8	56	14	15	9	0.14
HS2050702	10	70	18	17.5	11	0.26
HS2050703	12	84	21	20	13	0.44
HS2050704	14	98	25	23.5	16	0.65
HS2050705	16	110	28	26	18	0.91
HS2050706	18	130	31	28.5	20	1.29
HS2050707	20	140	35	31	22	1.67
HS2050708	22	150	38	33.5	24	2.11
HS2050709	24	170	41	36	26	2.60
HS2050710	26	180	44	39.5	29	3.62
HS2050711	28	200	47	42	31	4.37
HS2050712	32	220	53	47	35	6.05
HS2050713	36	250	59	53	40	8.61
HS2050714	40	280	65	58	44	11.8
HS2050715	44	310	70	63	48	16
