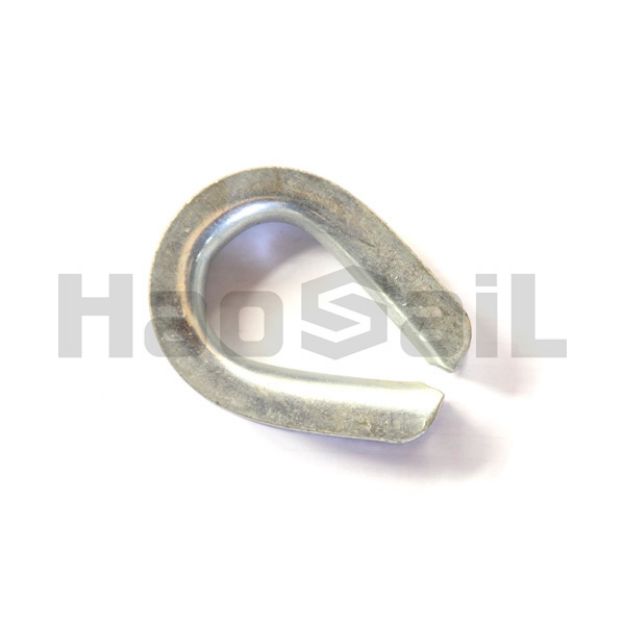

G414 US Type Heavy Duty Wire Rope Thimble

•Material: Carbon steel
•Production: Stamping
•Surface treatment:Electric galvanized or Hot dip galvanized
•Greater protection against wear and deformation of the wire rope eye
•Conform to American standard G414 requirement

SKU: 2.05.02

G414 US Type Heavy Duty Wire Rope Thimble

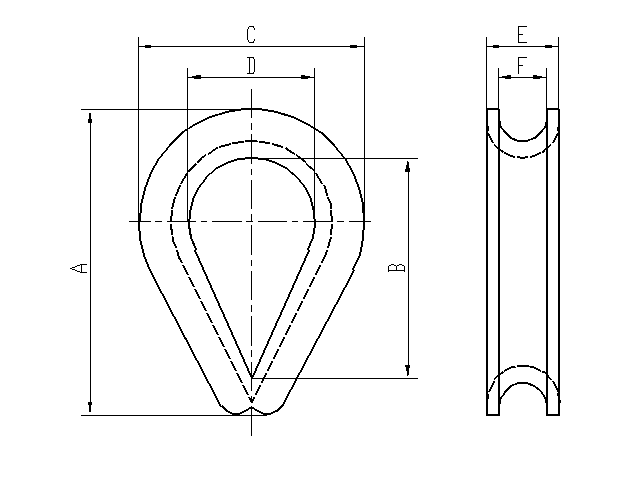

Stock no.	Size (in)	Dimensions(mm)						Weight ( kg )
Stock no.	Size (in)	A	B	C	D	E	F	Weight ( kg )
HS2050201	1/8	49.53	33.53	28.92	17.78	6.35	4	0.012
HS2050202	3/16	49.53	33.53	28.92	17.78	6.35	4	0.012
HS2050203	1/4	55.62	41.4	38.1	22.35	10.41	7.11	0.012
HS2050204	5/16	63.5	47.75	45.97	26.92	12.7	8.64	0.05
HS2050205	3/8	73.5	54.1	54.1	28.7	16	10.41	0.1
HS2050206	7/16	82.55	60.45	60.45	31.75	18.29	11.94	0.136
HS2050207	1/2	92.2	69.85	69.85	38.1	20.57	13.46	0.22
HS2050208	9/16	92.2	69.85	68.33	38.1	22.35	15	0.22
HS2050209	5/8	107.95	82.55	79.5	44.45	24.64	16.76	0.32
HS2050210	3/4	127	92.25	99.77	50.8	31	19.81	0.6
HS2050211	7/8	139.7	107.95	107.95	57.15	35.05	23.88	0.86
HS2050212	1	155.7	114.3	125.48	63.5	39.62	26.92	1.06
HS2050213	1 1/8-1 1/4	177.8	130.3	149.35	73.15	45.97	33.27	1.54
HS2050214	1 3/8	230.12	165.1	172.97	88.9	55.63	36.58	3.71
HS2050215	1 1/2	228.6	158.75	181.1	88.9	65.02	39.62	4.2
HS2050216	1 5/8	285.75	203.2	206.5	101.6	69.09	43.67	6.25
HS2050217	1 3/4	309.63	228.6	215.9	114.3	72.14	46.74	7.1
HS2050218	2	384.3	304.8	263.65	152.4	78.49	53.09	10.44
HS2050219	2 1/4	435.1	355.6	301.75	177.8	92.2	60.45	18.44
HS2050220	2 1/2	522	399.1	316.2	187.8	102.6	66.6	26.3
