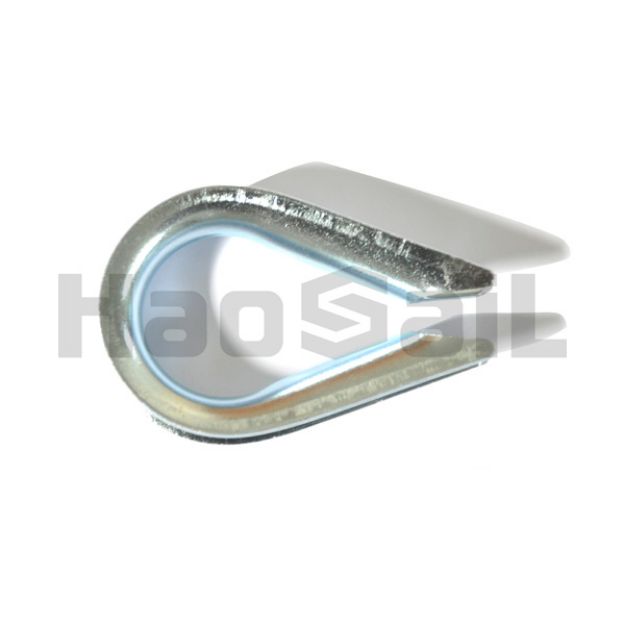

DIN 6899B Wire Rope Thimble

•Material: Carbon steel
•Production: Stamping
•Surface treatment:Electric galvanized or Hot dip galvanized
•Conform to German standard DIN6899-B requirement

SKU: 2.05.04

Overview
Contact Us

DIN 6899B Wire Rope Thimble

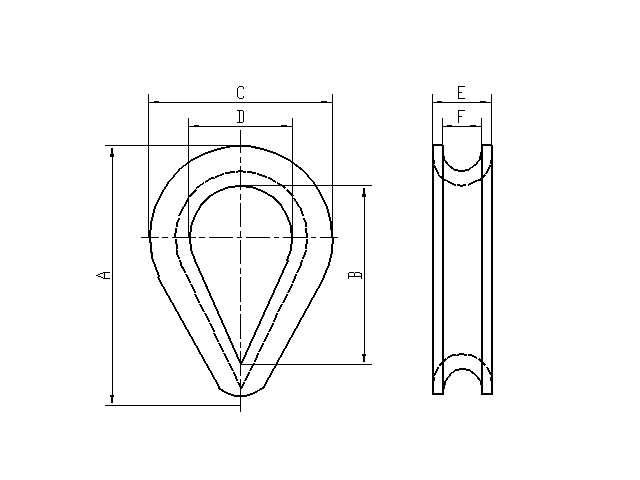

Stock no.	Size ( mm )	Dimensions(mm)						Weight 100pcs （kg）
Stock no.	Size ( mm )	A	B	C	D	E	F	Weight 100pcs （kg）
HS2050401	3	28	19	18.5	12	6	3	0.50
HS2050402	4	30	21	20.5	13	7	4	0.80
HS2050403	5	33	23	22.5	14	8	5	1.00
HS2050404	6	39	26	27	16	10	6	1.60
HS2050405	7	43	30	30	18	11	7	1.90
HS2050406	8	48	32	33	20	12	8	3.00
HS2050407	10	58	38	39	24	14	10	4.70
HS2050408	12	69	45	47	28	17	12	6.80
HS2050409	13	73	48	50	30	18	13	8.00
HS2050410	14	77	51	53	32	19	14	10.00
HS2050411	16	88	58	60	36	22	16	14.50
HS2050412	17	95	61	65	38	25	17	18.00
HS2050413	18	100	64	68	40	26	18	20.00
HS2050414	20	113	72	75	45	28	20	29.00
HS2050415	22	123	80	82	50	30	22	32.00
HS2050416	24	135	90	92	56	34	24	47.00
HS2050417	26	145	99	100	62	36	26	59.00
HS2050418	28	162	112	110	70	38	28	80.00
HS2050419	30	175	120	120	75	42	30	110.00
