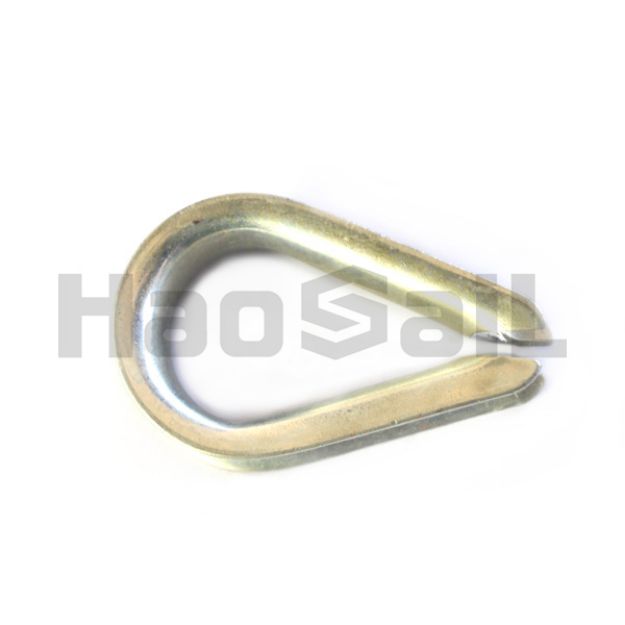

G411 US Type Light Wire Rope Thimble

•Material: Carbon steel
•Production: Stamping
•Surface treatment:Electric galvanized or Hot dip galvanized
•Conform to American standard G411 requirement

SKU: 2.05.01

G411 US Type Light Wire Rope Thimble
Stock no.	Size (in)	Dimensions(mm)						Weight ( kg )

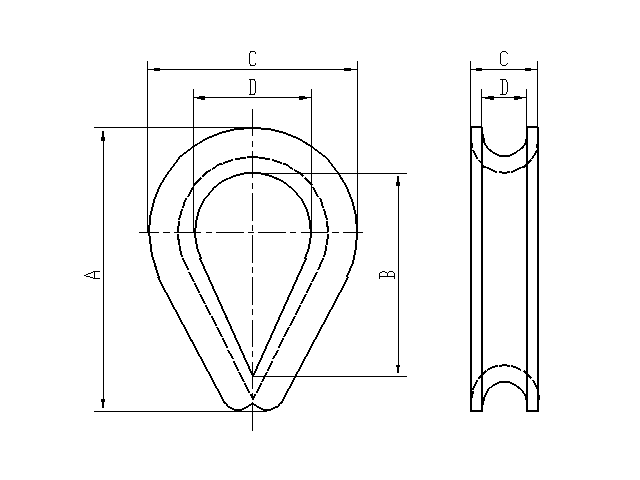

Stock no.	Size (in)	A	B	C	D	E	F	Weight ( kg )
HS2050101	1/8	49.28	33.27	27	17.5	6.35	4	0.013
HS2050102	3/16	49.28	33.27	27	17.5	7.87	5	0.013
HS2050103	1/4	49.28	33.27	27	17.5	9.65	7	0.013
HS2050104	5/16	54	38	31.75	20.57	11.18	8.6	0.016
HS2050105	3/8	60.5	41	37	23.88	13.46	10.4	0.026
HS2050106	1/2	69.85	47.75	44.45	28.7	17.53	13.5	0.052
HS2050107	5/8	89	57.15	60.45	35.05	23.11	16.8	0.145
HS2050108	3/4	95.25	63.5	68.33	41.4	27.43	19.8	0.2
HS2050109	7/8	127	88.9	81.03	47.75	32.26	23.88	0.32
HS2050110	1	169.93	107.95	95.25	63.5	35.3	26.92	0.4
HS2050111	1 1/8-1 1/4	158.75	114.3	109.47	69.85	44.45	33.27	0.84
HS2050112	1 3/8	207	191.5	145	90	48	36	1.36
HS2050113	1 1/2	225	206	165	105	51.62	39.62	1.42
HS2050114	1 5/8	248	230	176	110	59	43	1.64
HS2050115	1 3/4	264	243.5	180	110	62	46	1.94
HS2050116	1 7/8	283	264	186	114.3	68	52	2.14
HS2050117	2	289	270	188	114.3	69	53	4.94
HS2050118	2 1/2	316.3	295.3	252	152	84	64	7.4
