BS464 Thimble

•Material: Carbon steel
•Production: Stamping
•Surface treatment:Electric galvanized or Hot dip galvanized
•Conform to British standard BS464 requirement

SKU: 2.05.05

BS464 Thimble

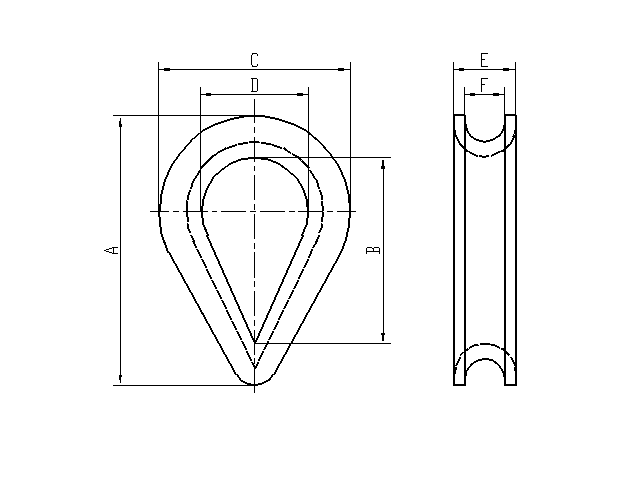

Stock no.	Size ( in )	Dimensions(in)						Weight ( kg )
Stock no.	Size ( in )	A	B	C	D	E	F	Weight ( kg )
HS2050501	5/16	2 1/8	1 5/16	1 1/2	7/8	1/2	5/16	0.065
HS2050502	3/8	2 1/2	1 1/2	1 7/8	1	9/16	13/32	0.091
HS2050503	7/16	2 7/8	1 1/2	2 1/8	1 1/8	11/16	1/2	0.120
HS2050504	1/2	3 1/8	1 3/4	2 5/16	1 1/4	13/16	9/16	0.160
HS2050505	9/16	3 1/8	1 3/4	2 5/16	1 1/4	13/16	9/16	0.172
HS2050506	5/8	3 7/8	2 5/16	2 15/16	1 5/8	7/8	5/8	0.260
HS2050507	1 1/16	4 1/4	2 5/8	3 1/8	1 3/4	1 1/8	3/4	0.340
HS2050508	3/4	4 7/8	2 7/8	3 5/8	2	1 1/8	13/16	0.450
HS2050509	7/8	4 1/4	3 1/4	4	2 1/4	1 1/4	7/8	0.620
HS2050510	1 5/16	5 3/4	3 5/8	5 11/16	2 1/2	1 5/16	1	0.800
HS2050511	1	6 3/8	4 1/4	4 11/16	2 3/4	1 3/8	1 1/16	0.950
HS2050512	1 1/18	7	4 3/8	5 1/4	3	1 1/8	1 1/8	1.270
HS2050513	1 1/4	7 3/4	5 1/4	6	3 3/4	1 5/8	1 5/16	1.600
HS2050514	1 3/8	9	6	6 7/8	4 1/8	1 7/8	1 1/2	2.350
HS2050515	1 1/2	10	6 1/2	7 3/4	4 1/2	2 1/8	1 5/8	3.300
HS2050516	1 5/8	10	6 1/2	7 3/4	4 1/2	2 3/16	1 1/6	3.350
HS2050517	1 3/4	11 1/4	7	9	5	2 1/4	2	6.250
HS2050518	1 7/8	12 1/4	7 1/2	9 3/4	5 1/4	2 5/8	2 3/8	7.700
HS2050519	2	13	8	10 1/8	5 1/2	3 2/4	2 1/8	8.050
HS2050520	2 1/8	13	8	10 1/8	5 1/2	2 3/4	2 1/2	8.300
HS2050521	2 1/4	14	8 1/2	10 5/8	5 3/4	3	2 5/8	8.600
HS2050522	2 1/2	16 1/4	9 1/2	12 1/4	6 1/4	3 3/4	2 3/4	17.000
