US Type Turnbuckle with Jaw&Jaw

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.11

US Type Turnbuckle with Jaw&Jaw

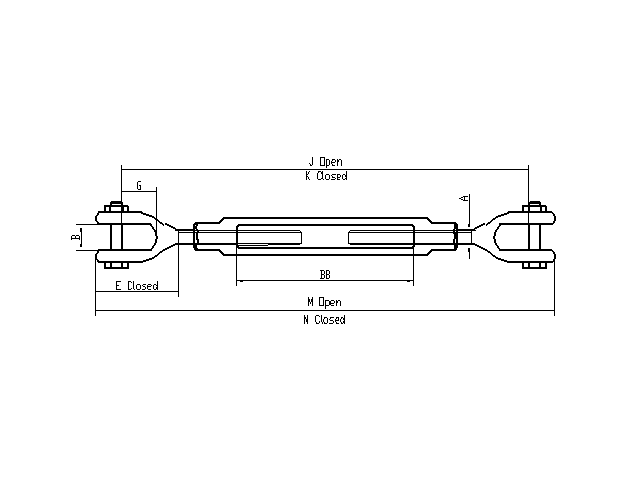

Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	Dimensions(in)
Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	A	B	E Closed	G	J Open	K Closed	M Open	N Closed	BB
HS2021101	1/4*4	500	0.36	0.25	0.41	1.58	0.62	10.90	6.90	11.90	7.90	4.00
HS2021102	5/16*4-1/2	800	0.52	0.31	0.47	1.98	0.87	12.36	8.36	13.90	9.40	4.50
HS2021103	3/8*6	1200	0.81	0.38	0.50	2.12	0.87	16.14	10.14	17.38	11.38	6.00
HS2021104	1/2*6	2200	1.50	0.50	0.63	2.75	1.06	17.50	11.50	19.00	13.00	6.00
HS2021105	1/2*9	2200	1.74	0.50	0.63	2.75	1.06	23.50	14.50	25.00	16.00	9.00
HS2021106	1/2*12	2200	2.46	0.50	0.63	2.75	1.06	29.50	17.50	31.00	19.00	12.00
HS2021107	5/8*6	3500	2.72	0.63	0.75	3.50	1.31	18.80	12.80	20.88	14.88	6.00
HS2021108	5/8*9	3500	3.24	0.63	0.75	3.50	1.31	24.80	15.80	26.88	17.88	9.00
HS2021109	5/8*12	3500	3.74	0.63	0.75	3.50	1.31	30.80	18.80	32.88	20.88	12.00
HS2021110	3/4*6	5200	4.11	0.75	0.94	4.18	1.50	20.00	14.00	22.60	16.60	6.00
HS2021111	3/4*9	5200	5.10	0.75	0.94	4.18	1.50	26.00	17.00	28.60	19.60	9.00
HS2021112	3/4"12	5200	5.65	0.75	0.94	4.18	1.50	32.00	20.00	34.60	22.60	12.00
HS2021113	3/4*18	5200	7.00	0.75	0.94	4.18	1.50	44.00	26.00	46.60	28.60	18.00
HS2021114	7/8*12	7200	8.17	0.88	1.13	4.85	1.75	33.36	21.36	36.32	24.32	12.00
HS2021115	7/8*18	7200	9.96	0.88	1.13	4.85	1.75	43.36	27.36	48.32	30.32	18.00
HS2021116	1*6	10000	8.56	1.00	1.19	5.53	2.06	22.72	16.72	26.06	20.06	6.00
HS2021117	1*12	10000	12.00	1.00	1.19	5.53	2.06	34.72	22.72	38.06	26.06	12.00
HS2021118	1*18	10000	14.00	1.00	1.19	5.53	2.06	46.72	28.72	50.06	32.06	18.00
HS2021119	1*24	10000	17.00	1.00	1.19	5.53	2.06	58.72	34.72	62.06	38.06	24.00
HS2021120	1-1/4*12	15200	21.50	1.25	1.75	7.21	2.81	37.34	25.34	41.54	29.54	12.00
HS2021121	1-1/4*18	15200	24.25	1.25	1.75	7.21	2.81	49.34	31.34	53.54	35.54	18.00
HS2021122	1-1/4*24	15200	28.00	1.25	1.75	7.21	2.81	61.34	37.34	65.54	41.54	24.00
HS2021123	1-1/2*12	21400	30.50	1.50	2.06	7.88	2.81	38.50	26.50	43.50	31.50	12.00
HS2021124	1-1/2*18	21400	36.75	1.50	2.06	7.88	2.81	50.50	32.50	55.50	37.50	18.00
HS2021125	1-1/2*24	21400	40.67	1.50	2.06	7.88	2.81	62.50	38.50	67.50	43.50	24.00
HS2021126	1-3/4*18	28000	55.04	1.75	2.38	9.40	3.38	53.38	35.38	59.18	41.18	18.00
HS2021127	1-3/4*24	28000	63.36	1.75	2.38	9.40	3.38	65.38	41.38	71.18	47.18	24.00
HS2021128	2*24	37000	94.25	2.00	2.50	11.86	3.69	69.54	45.54	76.72	52.12	24.00
HS2021129	2-1/2*24	60000	165.00	2.50	2.88	13.56	4.44	72.98	48.98	82.18	58.18	24.00
HS2021130	2-3/4*24	75000	198.00	2.75	3.50	15.22	4.19	74.75	50.75	85.50	61.50	24.00
