US Type Turnbuckle with Jaw & Eye

•Material: Stainless steel 304 or 316
•Production technology: Drop Forging
•Surface treatment: Self color/Polishing
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 4.02.09

Overview
Contact Us

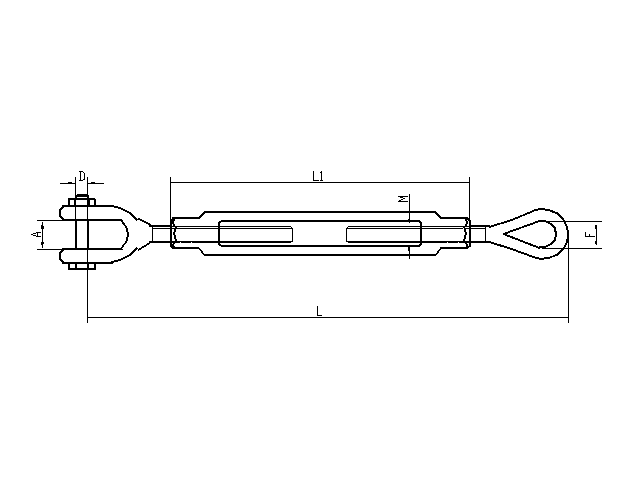

US Type Turnbuckle with Jaw & Eye
Stock no.	Size(in)	L（mm）	L1(mm)	A(mm)	D(thread)	F(mm)	M(thread)	WLL(kg)
HS4020901	1/4	197	120	11	1/4"UNC	8	1/4"UNC	160
HS4020902	5/16	234	140	12.5	1/4"UNC	10	5/16"UNC	250
HS4020903	3/8	282	180	14	5/16"UNG	12.5	3/8"UNC	400
HS4020904	1/2	318	190	16	3/8"UNC	18	1/2"UNC	700
HS4020905	5/8	360	200	19	1/2"UNC	22	5/8"UNC	1120
HS4020906	3/4	395	210	23	5/8"UNC	25	3/4"UNC	1600
