US Type Turnbuckle with Hook&Hook

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.09

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

US Type Turnbuckle with Hook&Hook

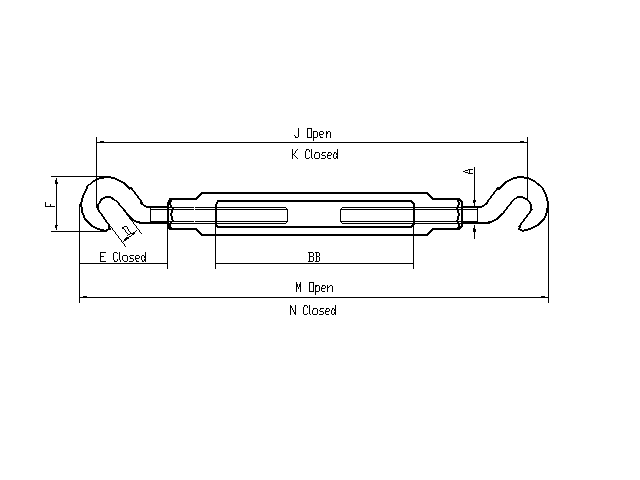

Size (in)	WLL (lbs)	Stock no.	Weight (lbs)	Dimensions(in)
Size (in)	WLL (lbs)	Stock no.	Weight (lbs)	A	E Closed	J Open	K Closed	M Open	N Closed	D	F	BB
1/4*4	400	HS2020901	0.33	0.25	1.59	11.12	7.12	11.94	7.94	0.45	1.27	4.00
5/16*4-1/2	700	HS2020902	0.52	0.31	1.94	12.81	8.31	13.81	9.31	0.50	1.50	4.50
3/8*6	1000	HS2020903	0.83	0.38	2.30	16.50	10.50	17.72	11.72	0.56	1.77	6.00
1/2*6	1500	HS2020904	1.88	0.50	2.94	18.82	11.82	20.38	13.38	0.66	2.28	6.00
1/2*12	1500	HS2020905	2.77	0.50	2.94	30.82	17.82	32.38	19.38	0.66	2.28	12.00
5/8*6	2250	HS2020906	3.21	0.63	3.69	20.50	13.25	22.50	15.25	0.90	2.81	6.00
5/8*12	2250	HS2020907	4.58	0.63	3.69	32.50	19.25	34.50	21.25	0.90	2.81	12.00
3/4*6	3000	HS2020908	4.20	0.75	4.52	22.38	14.88	24.78	17.28	0.98	3.33	6.00
3/4"12	3000	HS2020909	6.92	0.75	4.52	34.38	20.88	36.78	23.28	0.98	3.33	12.00
3/4*18	3000	HS2020910	8.65	0.75	4.52	46.38	26.88	48.78	29.28	0.98	3.33	18.00
7/8*12	4000	HS2020911	9.85	0.88	5.19	36.00	22.25	38.75	25.00	1.13	3.78	12.00
1*12	5000	HS2020912	11.93	1.00	5.84	37.63	23.63	40.69	26.69	1.25	4.25	12.00
1*18	5000	HS2020913	14.00	1.00	5.84	49.63	29.63	52.69	32.69	1.25	4.25	18.00
1*24	5000	HS2020914	17.25	1.00	5.84	61.63	35.63	64.69	38.69	1.25	4.25	24.00
1-1/4*12	6500	HS2020915	20.58	1.25	7.22	40.44	25.94	44.06	29.56	1.50	5.13	12.00
1-1/4*18	6500	HS2020916	23.00	1.25	7.22	52.44	31.94	56.06	35.56	1.50	5.13	18.00
1-1/4*24	6500	HS2020917	27.00	1.25	7.22	64.44	37.94	68.06	41.56	1.50	5.13	24.00
1-1/2*12	7500	HS2020918	27.50	1.50	8.34	43.94	28.94	47.44	32.44	1.88	5.75	12.00
1-1/2*18	7500	HS2020919	31.00	1.50	8.34	55.96	34.94	59.44	38.44	1.88	5.75	18.00
1-1/2*24	7500	HS2020920	37.50	1.50	8.34	67.94	40.94	71.44	44.44	1.88	5.75	24.00
