US Type Turnbuckle with Eye&Jaw

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.10

US Type Turnbuckle with Eye&Jaw

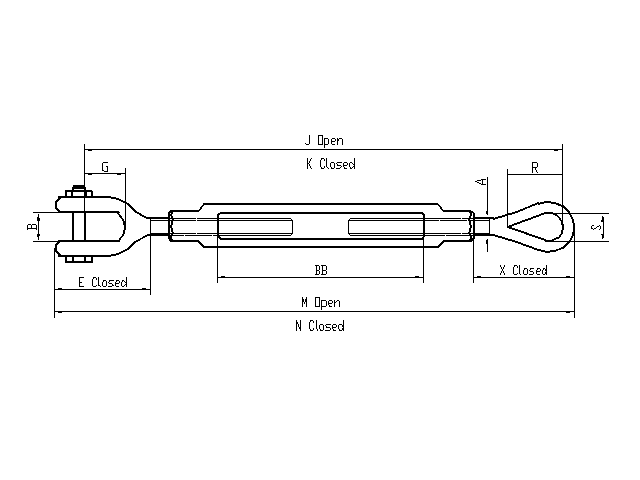

Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	Dimensions(in)
Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	A	B	E Closed	G	J Open	K Closed	M Open	N Closed	R	S	X Closed	BB
HS2021001	1/4*4	500	0.32	0.25	0.41	1.58	0.62	11.35	7.35	2.07	8.07	0.78	0.34	1.75	4.00
HS2021002	5/16*4-1/2	800	0.47	0.31	0.47	1.98	0.87	13.71	8.71	14.01	9.51	0.94	0.44	2.09	4.50
HS2021003	3/8*6	1200	0.76	0.38	0.50	2.12	0.87	16.81	10.81	17.77	11.77	1.12	0.53	2.52	6.00
HS2021004	1/2*6	2200	1.53	0.50	0.63	2.75	1.06	18.29	12.28	19.48	13.48	1.44	0.72	3.23	6.00
HS2021005	1/2*9	2200	1.71	0.50	0.63	2.75	1.06	24.29	15.29	25.48	16.48	1.44	0.72	3.23	9.00
HS2021006	1/2*12	2200	2.06	0.50	0.63	2.75	1.06	30.29	18.29	31.48	19.48	1.44	0.72	3.23	12.00
HS2021007	5/8*6	3500	2.35	0.63	0.75	3.50	1.31	19.74	13.74	21.28	15.28	1.75	0.88	3.90	6.00
HS2021008	5/8*9	3500	3.06	0.63	0.75	3.50	1.31	25.74	16.74	27.28	18.28	1.75	0.88	3.90	9.00
HS2021009	5/8*12	3500	3.78	0.63	0.75	3.50	1.31	31.74	19.74	33.28	21.28	1.75	0.88	3.90	12.00
HS2021010	3/4*6	5200	4.00	0.75	0.94	4.18	1.50	21.19	15.19	23.11	17.11	2.09	1.00	4.69	6.00
HS2021011	3/4*9	5200	4.75	0.75	0.94	4.18	1.50	27.19	18.19	29.11	20.11	2.09	1.00	4.69	9.00
HS2021012	3/4"12	5200	5.36	0.75	0.94	4.18	1.50	33.19	21.19	35.11	23.11	2.09	1.00	4.69	12.00
HS2021013	3/4*18	5200	7.00	0.75	0.94	4.18	1.50	45.19	27.19	47.11	29.11	2.09	1.00	4.69	18.00
HS2021014	7/8*12	7200	8.00	0.88	1.13	4.85	1.75	34.34	23.34	36.57	24.57	2.38	1.25	5.10	12.00
HS2021015	7/8*18	7200	9.75	0.88	1.13	4.85	1.75	46.34	28.34	48.57	30.57	2.38	1.25	5.10	18.00
HS2021016	1*6	10000	8.92	1.00	1.19	5.53	2.06	24.34	18.34	26.89	20.89	3.00	1.44	6.36	6.00
HS2021017	1*12	10000	11.20	1.00	1.19	5.53	2.06	36.34	24.34	38.89	26.89	3.00	1.44	6.36	12.00
HS2021018	1*18	10000	13.30	1.00	1.19	5.53	2.06	48.34	30.34	50.89	32.89	3.00	1.44	6.36	18.00
HS2021019	1*24	10000	17.00	1.00	1.19	5.53	2.06	60.34	36.34	62.89	38.89	3.00	1.44	6.36	24.00
HS2021020	1-1/4*12	15200	20.00	1.25	1.75	7.21	2.81	38.82	26.82	42.05	30.05	3.56	1.81	7.72	12.00
HS2021021	1-1/4*18	15200	24.18	1.25	1.75	7.21	2.81	50.82	32.82	54.05	36.05	3.56	1.81	7.72	18.00
HS2021022	1-1/4*24	15200	28.50	1.25	1.75	7.21	2.81	62.82	38.82	66.05	42.05	3.56	1.81	7.72	24.00
HS2021023	1-1/2*12	21400	28.99	1.50	2.06	7.88	2.81	40.50	28.50	44.25	32.25	4.06	2.12	8.62	12.00
HS2021024	1-1/2*18	21400	35.00	1.50	2.06	7.88	2.81	52.50	34.50	56.25	38.25	4.06	2.12	8.62	18.00
HS2021025	1-1/2*24	21400	39.18	1.50	2.06	7.88	2.81	64.50	40.50	68.25	44.25	4.06	2.12	8.62	24.00
HS2021026	1-3/4*18	28000	53.75	1.75	2.38	9.40	3.38	55.38	37.38	59.78	41.78	4.62	2.38	10.00	18.00
HS2021027	1-3/4*24	28000	60.68	1.75	2.38	9.40	3.38	67.38	43.38	71.78	47.78	4.62	2.38	10.00	24.00
HS2021028	2*24	37000	89.00	2.00	2.50	11.86	3.69	72.62	48.62	77.95	53.95	5.75	2.69	13.09	24.00
HS2021029	2-1/2*24	60000	150.00	2.50	2.88	13.56	4.44	75.80	51.80	82.40	58.40	6.50	3.12	13.78	24.00
HS2021030	2-3/4*24	75000	183.00	2.75	2.50	15.22	4.19	77.88	53.88	85.50	61.50	7.00	3.25	15.22	24.00
