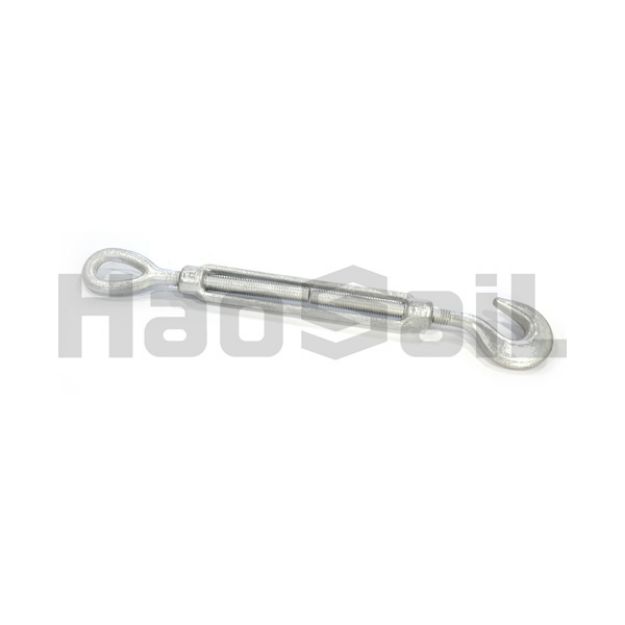

US Type Turnbuckle with Eye&Hook

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.07

US Type Turnbuckle with Eye&Hook
Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	Dimensions(in)

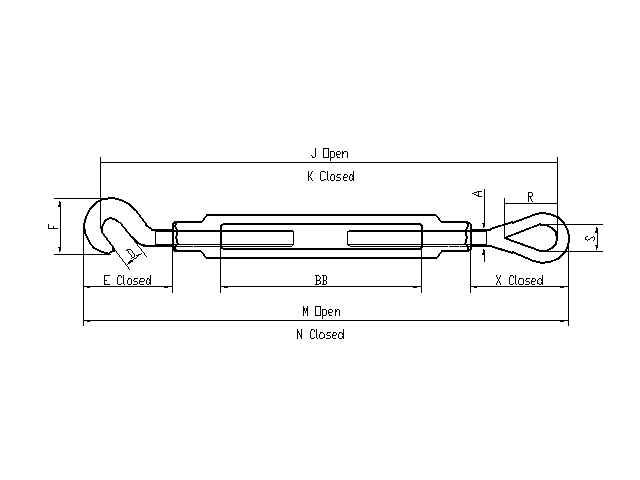

Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	A	D	E Closed	F	J Open	K Closed	M Open	N Closed	R	S	X Closed	BB
HS2020701	1/4*4	400	0.30	0.25	0.45	1.59	1.27	11.46	7.46	12.09	8.09	0.78	0.34	1.75	4.00
HS2020702	5/16*4-1/2	700	0.47	0.31	0.50	1.94	1.50	13.19	8.69	13.47	9.47	0.94	0.44	2.09	4.50
HS2020703	3/8*6	1000	0.75	0.38	0.56	2.30	1.77	16.50	10.98	17.94	11.94	1.12	0.53	2.52	6.00
HS2020704	1/2*6	1500	1.60	0.50	0.66	2.94	2.28	18.45	12.45	19.67	13.16	1.44	0.72	3.23	6.00
HS2020705	1/2*9	1500	1.83	0.50	0.66	2.94	2.28	24.45	15.45	25.67	16.67	1.44	0.72	3.23	9.00
HS2020706	1/2*12	1500	2.08	0.50	0.66	2.94	2.28	30.45	18.45	31.67	19.67	1.44	0.72	3.23	12.00
HS2020707	5/8*6	2250	2.75	0.63	0.84	3.69	2.81	19.96	13.96	21.47	15.47	1.75	0.88	3.90	6.00
HS2020708	5/8*9	2250	3.13	0.63	0.84	3.69	2.81	25.96	16.96	27.47	18.47	1.75	0.88	3.90	9.00
HS2020709	5/8*12	2250	3.50	0.63	0.84	3.69	2.81	31.96	19.96	33.47	21.47	1.75	0.88	3.90	12.00
HS2020710	3/4*6	3000	3.89	0.75	0.98	4.52	3.33	21.63	25.96	23.45	17.45	2.09	1.00	4.69	6.00
HS2020711	3/4*9	3000	4.16	0.75	0.98	4.52	3.33	27.63	31.96	29.45	20.45	2.09	1.00	4.69	9.00
HS2020712	3/4"12	3000	5.43	0.75	0.98	4.52	3.33	33.63	21.63	35.45	23.45	2.09	1.00	4.69	12.00
HS2020713	3/4*18	3000	7.25	0.75	0.98	4.52	3.33	45.63	27.63	47.45	29.45	2.09	1.00	4.69	18.00
HS2020714	7/8*12	4000	8.10	0.88	1.13	5.19	3.78	34.78	22.78	36.91	24.91	2.38	1.25	5.10	12.00
HS2020715	7/8*18	4000	9.95	0.88	1.13	5.19	3.78	46.78	28.78	48.91	30.91	2.38	1.25	5.10	18.00
HS2020716	1*6	5000	9.33	1.00	1.25	5.84	4.25	24.80	18.80	27.20	21.20	3.00	1.44	6.36	6.00
HS2020717	1*12	5000	11.93	1.00	1.25	5.84	4.25	36.80	24.80	39.20	27.20	3.00	1.44	6.36	12.00
HS2020718	1*18	5000	14.00	1.00	1.25	5.84	4.25	48.80	30.80	51.20	33.20	3.00	1.44	6.36	18.00
HS2020719	1*24	5000	17.25	1.00	1.25	5.84	4.25	60.80	36.80	63.20	39.20	3.00	1.44	6.36	24.00
HS2020720	1-1/4*12	5000	19.00	1.25	1.50	7.22	5.13	39.13	27.13	42.06	30.06	3.56	1.81	7.72	12.00
HS2020721	1-1/4*18	5000	23.00	1.25	1.50	7.22	5.13	51.13	33.13	54.06	36.06	3.56	1.81	7.72	18.00
HS2020722	1-1/4*24	5000	27.00	1.25	1.50	7.22	5.13	63.13	39.13	66.06	42.06	3.56	1.81	7.72	24.00
HS2020723	1-1/2*12	7500	27.50	1.50	1.88	8.34	5.75	41.72	29.72	44.72	32.72	4.06	2.12	8.62	12.00
HS2020724	1-1/2*18	7500	31.00	1.50	1.88	8.34	5.75	53.72	35.72	56.72	38.72	4.06	2.12	8.62	18.00
HS2020725	1-1/2*24	7500	37.50	1.50	1.88	8.34	5.75	65.72	41.72	68.72	44.72	4.06	2.12	8.62	24.00
