US Type Turnbuckle with Eye&Eye

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.08

US Type Turnbuckle with Eye&Eye
Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	Dimensions(in)

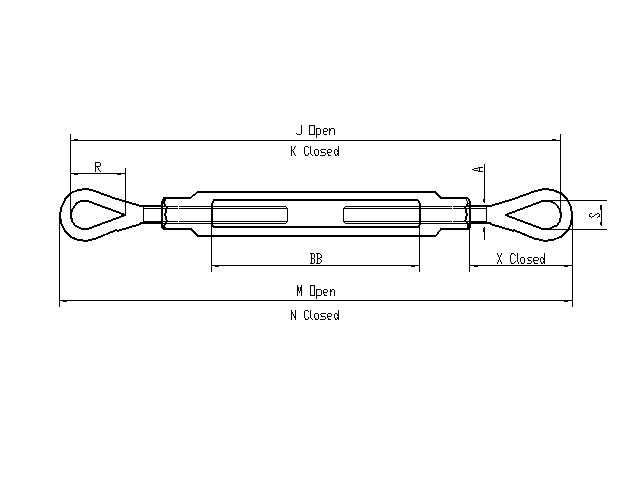

Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	A	J Open	K Closed	M Open	N Closed	R	S	X Closed	BB
HS2020801	1/4*4	500	0.30	0.25	11.80	7.80	12.25	8.25	0.78	0.34	1.75	4.00
HS2020802	5/16*4-1/2	800	0.47	0.31	13.56	9.06	14.12	9.62	0.94	0.44	2.09	4.50
HS2020803	3/8*6	1200	0.75	0.38	17.47	11.47	18.16	12.16	1.12	0.53	2.52	6.00
HS2020804	1/2*6	2200	1.60	0.50	19.08	13.08	19.96	13.96	1.44	0.72	3.23	6.00
HS2020805	1/2*9	2200	1.83	0.50	25.08	16.08	25.96	16.96	1.44	0.72	3.23	9.00
HS2020806	1/2*12	2200	2.08	0.50	31.08	19.08	31.96	19.96	1.44	0.72	3.23	12.00
HS2020807	5/8*6	3500	2.75	0.63	20.68	14.68	21.68	15.68	1.75	0.88	3.90	6.00
HS2020808	5/8*9	3500	3.13	0.63	26.68	17.68	27.68	18.68	1.75	0.88	3.90	9.00
HS2020809	5/8*12	3500	3.50	0.63	32.68	20.68	33.68	21.68	1.75	0.88	3.90	12.00
HS2020810	3/4*6	5200	3.89	0.75	22.38	16.38	23.62	17.62	2.09	1.00	4.69	6.00
HS2020811	3/4*9	5200	4.61	0.75	28.38	19.38	29.62	20.62	2.09	1.00	4.69	9.00
HS2020812	3/4"12	5200	5.43	0.75	34.38	22.38	35.62	23.62	2.09	1.00	4.69	12.00
HS2020813	3/4*18	5200	7.25	0.75	46.38	28.38	47.62	29.62	2.09	1.00	4.69	18.00
HS2020814	7/8*12	7200	8.10	0.88	35.32	23.32	36.82	24.82	2.38	1.25	5.10	12.00
HS2020815	7/8*18	7200	9.95	0.88	47.32	29.32	48.82	30.82	2.38	1.25	5.10	18.00
HS2020816	1*6	10000	9.33	1.00	25.97	19.97	27.72	21.72	3.00	1.44	6.36	6.00
HS2020817	1*12	10000	11.93	1.00	37.97	25.97	39.97	27.72	3.00	1.44	6.36	12.00
HS2020818	1*18	10000	14.00	1.00	49.97	31.97	51.72	33.72	3.00	1.44	6.36	18.00
HS2020819	1*24	10000	17.25	1.00	61.97	37.97	63.72	39.72	3.00	1.44	6.36	24.00
HS2020820	1-1/4*12	15200	19.00	1.25	40.31	28.31	42.56	30.56	3.56	1.81	7.72	12.00
HS2020821	1-1/4*18	15200	23.00	1.25	52.31	34.31	54.56	36.56	3.56	1.81	7.72	18.00
HS2020822	1-1/4*24	15200	27.00	1.25	64.31	40.31	66.56	42.56	3.56	1.81	7.72	24.00
HS2020823	1-1/2*12	21400	27.50	1.50	42.50	30.50	45.00	33.00	4.06	2.12	8.62	12.00
HS2020824	1-1/2*18	21400	31.00	1.50	54.50	36.50	57.00	39.00	4.06	2.12	8.62	18.00
HS2020825	1-1/2*24	21400	37.50	1.50	66.50	42.50	69.00	45.00	4.06	2.12	8.62	24.00
HS2020826	1-3/4*18	28000	52.50	1.75	57.38	39.38	60.38	42.38	4.62	2.38	10.00	18.00
HS2020827	1-3/4*24	28000	58.00	1.75	69.38	45.38	72.38	48.38	4.62	2.38	10.00	24.00
HS2020828	2*24	37000	85.25	2.00	75.69	51.69	79.19	55.19	5.75	2.69	13.09	24.00
HS2020829	2-1/2*24	60000	144.25	2.50	78.62	54.62	82.62	58.62	6.50	3.12	13.78	24.00
HS2020830	2-3/4*24	75000	194.00	2.75	81.00	57.00	85.50	61.50	7.00	3.25	15.22	24.00
