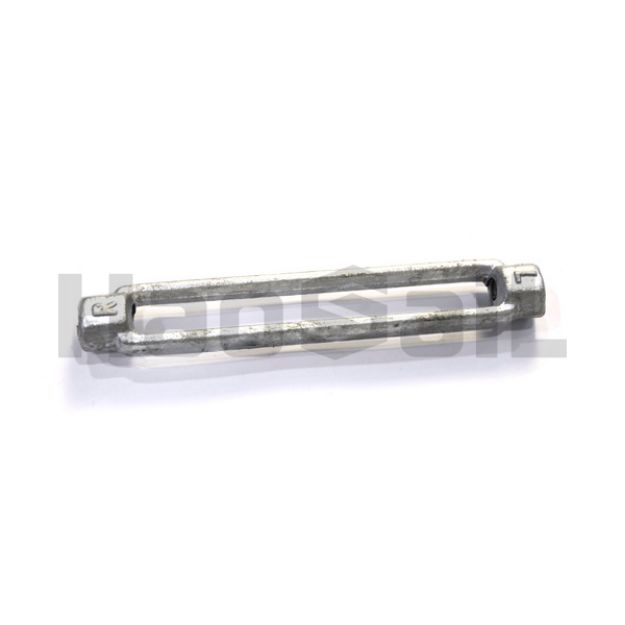

US Type Turnbuckle Body

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.13

US Type Turnbuckle Body

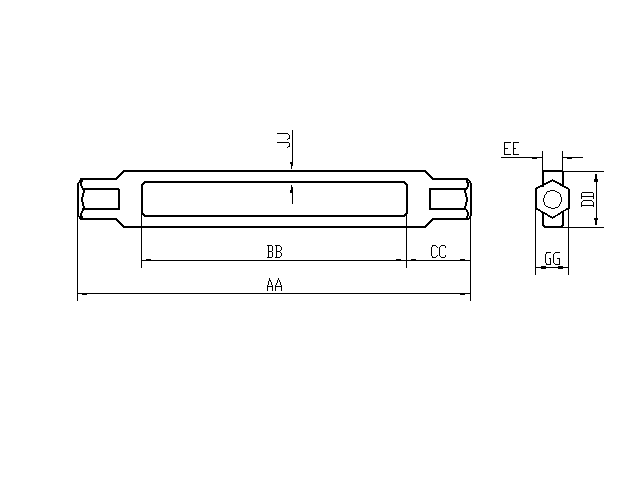

Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	Dimensions(in)
Stock no.	Size (in)	WLL (lbs)	Weight (lbs)	AA	BB	CC	DD	EE	GG	HH	JJ
HS2021301	1/4*4	500	0.15	4.75	4.00	0.38	0.72	0.34	0.50	0.38	0.11
HS2021302	5/16*4 1/2	800	0.19	5.44	4.50	0.47	0.81	0.38	0.56	0.44	0.19
HS2021303	3/8*6	1200	0.29	7.12	6.00	0.56	0.88	0.38	0.62	0.50	0.19
HS2021304	1/2*6	2200	0.60	7.50	6.00	0.75	1.12	0.50	0.81	0.62	0.25
HS2021305	1/2*9	2200	0.68	10.50	9.00	0.75	1.12	0.50	0.81	0.62	0.25
HS2021306	1/2*12	2200	1.00	13.50	12.00	0.75	1.12	0.50	0.81	0.62	0.25
HS2021307	5/8*6	3500	0.90	7.88	6.00	0.94	1.38	0.62	1.00	0.75	0.31
HS2021308	5/8*9	3500	1.18	10.88	9.00	0.94	1.38	0.62	1.00	0.75	0.31
HS2021309	5/8*12	3500	1.43	13.88	12.00	0.94	1.38	0.62	1.00	0.75	0.31
HS2021310	3/4*6	5200	1.30	8.25	6.00	1.12	1.69	0.75	1.12	0.94	0.38
HS2021311	3/4*9	5200	1.75	11.25	9.00	1.12	1.69	0.75	1.12	0.94	0.38
HS2021312	3/4"12	5200	2.08	14.25	12.00	1.12	1.69	0.75	1.12	0.94	0.38
HS2021313	3/4*18	5200	2.50	20.25	18.00	1.12	1.69	0.75	1.12	0.94	0.38
HS2021314	7/8*12	7200	2.70	14.62	12.00	1.31	1.94	0.88	1.31	1.06	0.44
HS2021315	7/8*18	7200	3.80	20.62	18.00	1.31	1.94	0.88	1.31	1.06	0.44
HS2021316	1*6	10000	2.48	9.00	6.00	1.50	2.25	1.00	1.50	1.25	0.50
HS2021317	1*12	10000	3.93	15.00	12.00	1.50	2.25	1.00	1.50	1.25	0.50
HS2021318	1*18	10000	5.28	21.00	18.00	1.50	2.25	1.00	1.50	1.25	0.50
HS2021319	1*24	10000	7.38	27.00	24.00	1.50	2.25	1.00	1.50	1.25	0.50
HS2021320	1 1/4*12	15200	5.25	15.12	12.00	1.56	2.62	1.25	1.88	1.50	0.56
HS2021321	1 1/4*18	15200	7.75	21.12	18.00	1.56	2.62	1.25	1.88	1.50	0.56
HS2021322	1 1/4*24	15200	10.17	27.12	24.00	1.56	2.62	1.25	1.88	1.50	0.56
HS2021323	1 1/2*12	21400	8.75	15.75	12.00	1.88	3.00	1.50	2.25	1.75	0.62
HS2021324	1 1/2*18	21400	11.00	21.75	18.00	1.88	3.00	1.50	2.25	1.75	0.62
HS2021325	1 1/2*24	21400	13.69	27.75	24.00	1.88	3.00	1.50	2.25	1.75	0.62
HS2021326	1 3/4*18	28000	16.38	22.38	18.00	2.09	3.62	1.75	2.62	2.12	0.75
HS2021327	1 3/4*24	28000	21.25	28.38	24.00	2.19	3.62	1.75	2.62	2.12	0.75
HS2021328	2*24	37000	27.60	29.00	24.00	2.50	4.12	2.00	3.00	2.38	0.88
HS2021329	2 1/2*24	60000	54.00	31.06	24.00	3.53	5.62	2.75	3.88	3.12	1.25
HS2021330	2 3/4*24	75000	54.00	31.06	24.00	3.53	5.62	2.75	3.88	3.12	1.25
