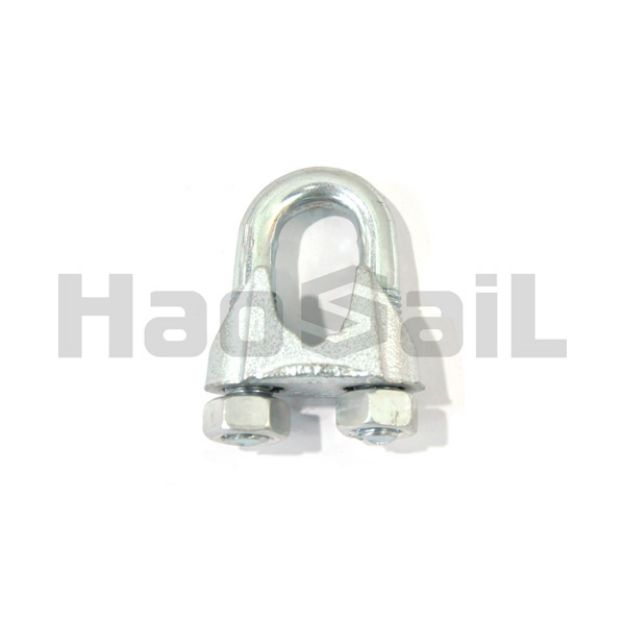

US Type Malleable Wire Rope Clips

•Material: Malleable carbon steel
•Produced as per American standard FF-C-450 requirement
•Production technology: Casting
•Surface treatment: Self color/Electric Galvanized/Hot dip galvanized

SKU: 2.03.04

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

US Type Malleable Wire Rope Clips

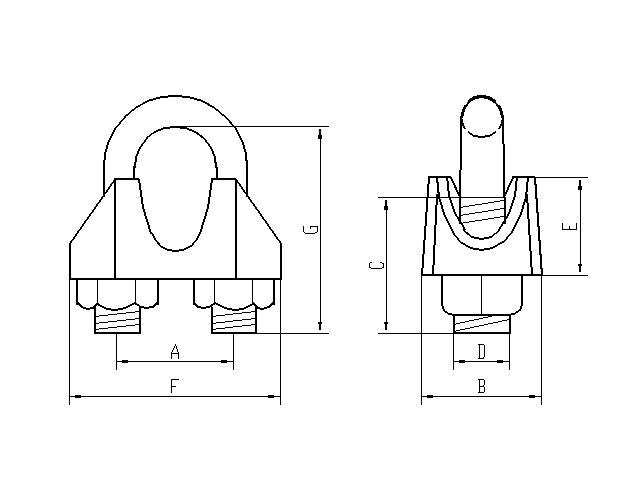

Stock no.	Size (in)	Diemensions(in)							Weight 100pcs (kg)
Stock no.	Size (in)	A	B	C	D	E	G	H	Weight 100pcs (kg)
HS2030401	1/8	1/4	13/16	1/2	1/2	7/16	1/2	15/16	1.95
HS2030402	3/16	1/4	31/32	5/8	9/16	1/2	9/16	1-1/16	3.08
HS2030403	1/4	5/16	1-7/32	7/8	11/16	5/8	11/16	1-3/8	6.58
HS2030404	5/16	5/16	1-7/32	7/8	11/16	11/16	11/16	1-3/8	6.80
HS2030405	3/8	3/8	1-5/8	1	7/8	13/16	7/8	1-5/8	9.75
HS2030406	7/16	3/8	1-5/8	1	7/8	13/16	15/16	1-5/8	10.89
HS2030407	1/2	7/16	2	1-1/4	1	1-1/16	1	1-7/8	16.78
HS2030408	9/16	1/2	2-5/16	1-15/32	1-3/16	1-3/16	1-1/8	2-3/16	24.95
HS2030409	5/8	1/2	2-5/16	1-15/32	1-3/16	1-5/16	1-1/8	2-3/16	26.76
HS2030410	3/4	9/16	2-9/16	1-3/4	1-11/32	1-1/2	1-1/4	2-7/16	38.10
HS2030411	7/8	5/8	3-1/16	1-13/16	1-5/8	1-3/4	1-3/4	2-7/8	58.06
HS2030412	1	5/8	3-3/8	2-1/16	1-3/4	1-15/16	2	3	68.04
HS2030413	1 1/8	3/4	3-7/8	2-3/16	2-1/16	2-3/16	2-1/8	3-7/16	110.22
HS2030414	1 1/4	3/4	3-7/8	2-3/16	2-1/16	2-3/8	2-1/2	3-7/16	118.84
HS2030415	1 3/8	7/8	4-1/2	2	2-9/16	2-7/8	3-1/8	4-3/16	206.84
HS2030416	1 1/2	7/8	4-1/2	2	2-9/16	3	3-1/4	4-1/4	232.24
