US Type Forged Wire Rope Clips

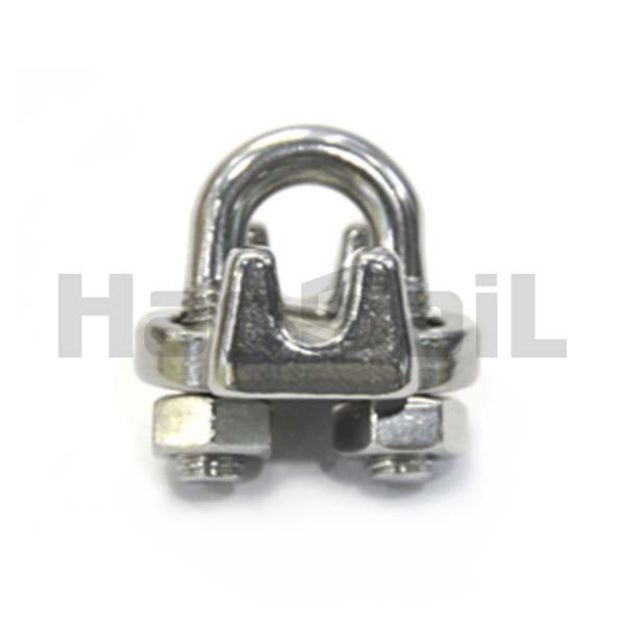

US Type Forged Wire Rope Clips

•Material: Stainless steel 304 or 316
•Produced as per American standard
•Production technology: Forging
•Surface treatment: Self color/Polishing

SKU: 4.03.04

Overview
Contact Us

US Type Forged Wire Rope Clips

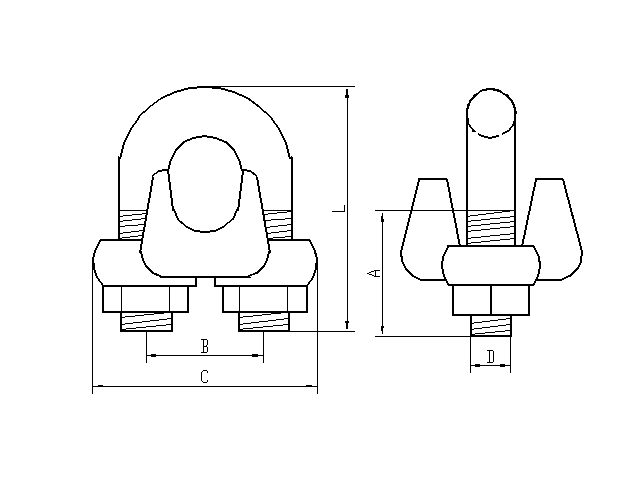

Stock no.	Size(in)	A(mm)	B(mm)	C(mm)	D（thread）	L（mm）
HS4030401	1/8	11.0	12.0	21	M6	18
HS4030402	3/16	14.0	15.0	24	M6	24
HS4030403	1/4	15.0	19.0	30	M8	26
HS4030404	5/16	19.0	22.0	33	M10	35
HS4030405	3/8	19.0	25.0	41	M12	38
HS4030406	1/2	25.0	30.0	48	M12	47
HS4030407	5/8	32.0	33.0	52	M14	60
HS4030408	3/4	36.0	38.0	57	M16	70
HS4030409	7/8	41.0	44.0	62	M20	79
HS4030410	1	46.0	47.0	67	M20	89
