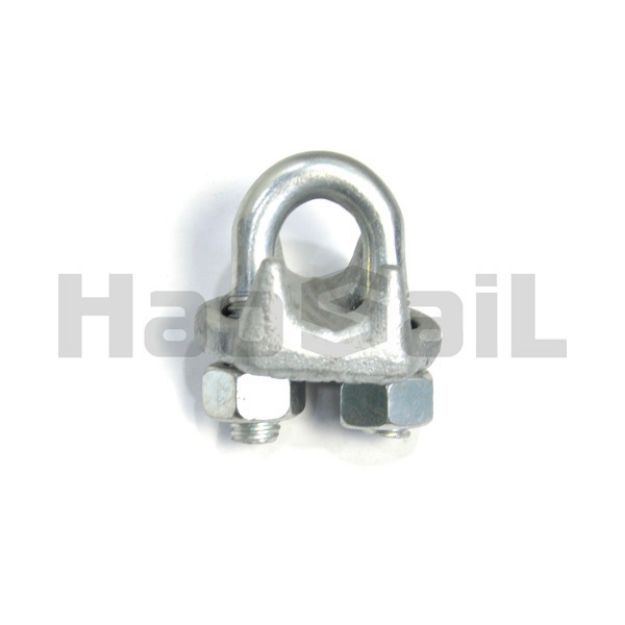

US Type Drop Forged Wire Rope Clips

•Material: Carbon steel
•Produced as per American standard FF-C-450 requirement
•Production technology: Drop forging
•Surface treatment: Self color/Electric Galvanized/Hot dip galvanized

SKU: 2.03.03

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

US Type Drop Forged Wire Rope Clips

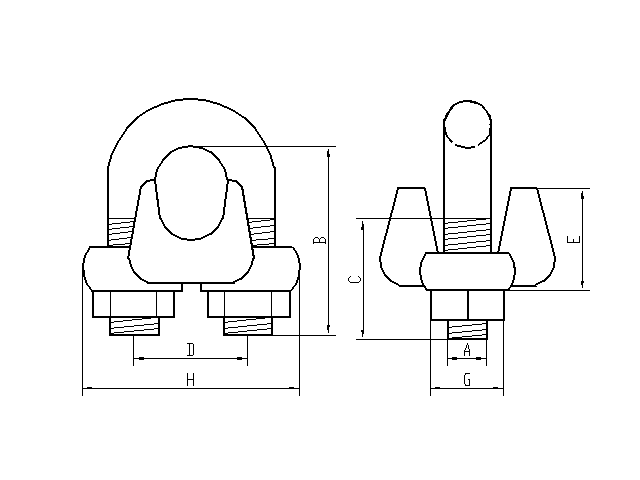

Stock no.	Size (in)	Diemensions(in)								Weight 100pcs (kg)
Stock no.	Size (in)	A	B	C	D	E	F	G	H	Weight 100pcs (kg)
HS2030301	1/8	0.22	0.72	0.44	0.47	0.37	0.38	0.81	0.99	2.72
HS2030302	3/16	0.25	0.97	0.56	0.59	0.50	0.44	0.94	1.18	4.54
HS2030303	1/4	0.31	1.03	0.5	0.75	0.66	0.56	1.19	1.43	8.62
HS2030304	5/16	0.38	1.38	0.75	0.88	0.73	0.69	1.31	1.66	12.70
HS2030305	3/8	0.44	1.5	0.75	1	0.91	0.75	1.63	1.94	21.77
HS2030306	7/16	0.5	1.88	1	1.19	1.13	0.88	1.91	2.28	35.38
HS2030307	1/2	0.5	1.88	1	1.19	1.13	0.88	1.91	2.28	36.29
HS2030308	9/16	0.56	2.25	1.25	1.31	1.34	0.94	2.06	2.5	49.44
HS2030309	5/8	0.56	2.25	1.25	1.31	1.34	0.94	2.06	2.5	49.90
HS2030310	3/4	0.62	2.75	1.44	1.5	1.39	1.06	2.25	2.84	64.41
HS2030311	7/8	0.75	3.12	1.62	1.75	1.58	1.25	2.44	2.16	96.16
HS2030312	1	0.75	3.5	1.81	1.88	1.77	1.25	2.63	3.47	114.31
HS2030313	1 1/8	0.75	3.88	2	2	1.91	1.25	2.81	3.59	128.37
HS2030314	1 1/4	0.88	4.44	2.22	2.34	2.17	1.44	3.13	4.13	198.68
HS2030315	1 3/8	0.88	4.44	2.22	2.34	2.31	1.44	3.13	4.19	200.49
HS2030316	1 1/2	0.88	4.94	2.38	2.59	2.44	1.44	3.41	4.44	246.76
HS2030317	1 5/8	1	5.31	2.62	2.75	2.66	1.63	3.63	4.75	319.33
HS2030318	1 3/4	1.13	5.75	2.75	3.06	2.92	1.81	3.81	5.24	423.66
HS2030319	2	1.25	6.44	3	3.38	3.03	2	4.44	5.88	589.68
HS2030320	2 1/4	1.25	7.13	3.19	3.88	3.19	2	4.56	6.38	725.76
HS2030321	2 1/2	1.25	7.69	3.44	4.13	3.69	2	4.69	6.63	861.84
HS2030322	2 3/4	1.25	8.31	3.56	4.38	4.88	2	5	6.88	1043.28
HS2030323	3	1.5	9.19	3.88	4.75	4.44	2.38	5.31	7.61	1406.16
HS2030324	3 1/2	1.5	10.75	4.5	5.5	6	2.38	6.19	8.38	1814.40
