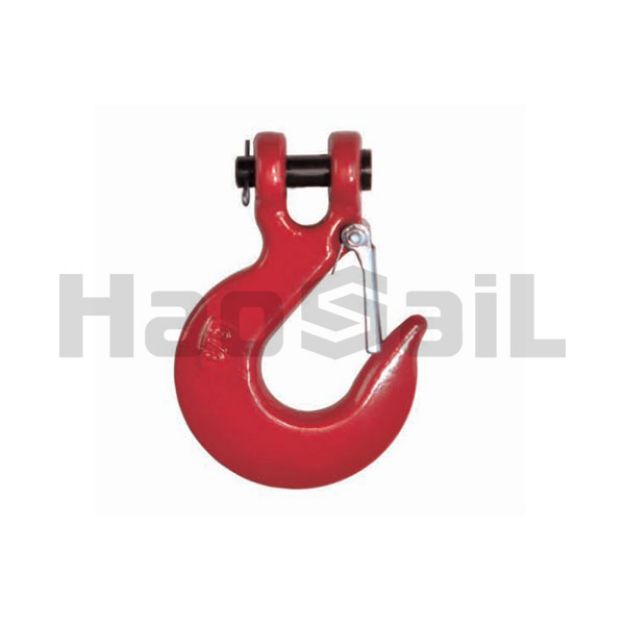

Picture of US type Clevis Slip Hook with Latch

US type Clevis Slip Hook with Latch

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load is 4 times of the working load limit
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
SKU: 1.05.05

US type Clevis Slip Hook with Latch

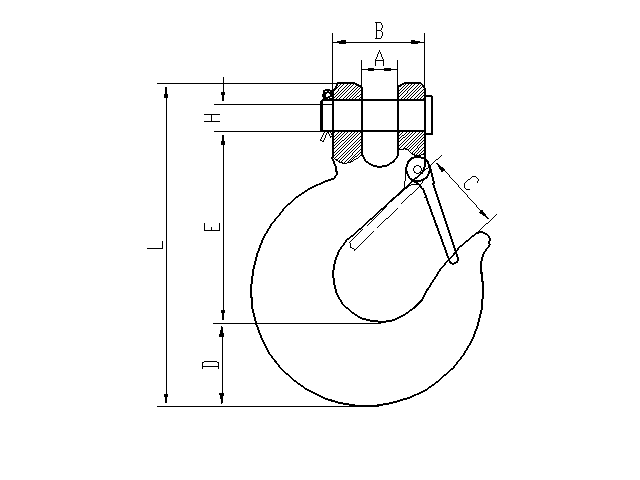

Stock no.WLL(lbs)BL(lbs)A(mm)B(mm)C(mm)D(mm)E(mm)L(mm)H(mm)Weight(kg)
HS105050127501100010.8272022661039.30.23
HS105050243001720012.53223.5267311710.30.38
HS105050352502100015392929.584.5133.711.60.6
HS105050470002800014.5443434.893151.214.20.9
HS105050590003600018.54834.54310016815.81.34
HS105050613500540001858.74346125200.518.82.2
HS1050507192507700029.5815060156.625625.54.8
