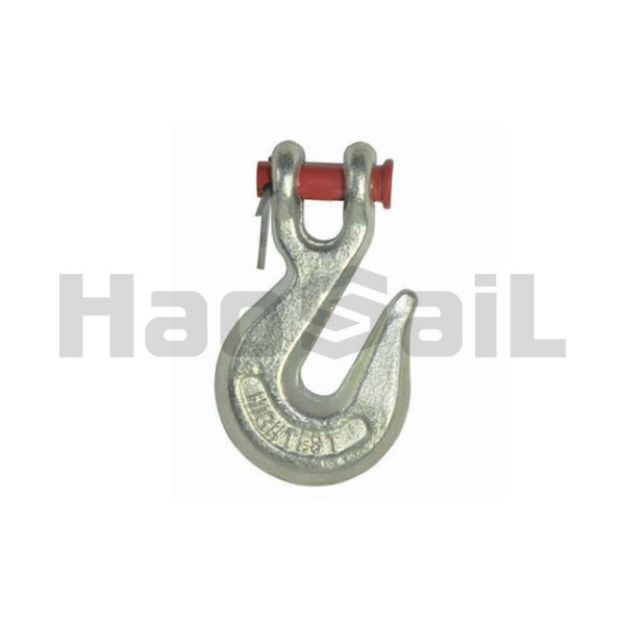

US type Clevis Grab Hook

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load is 4 times of the working load limit
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The Clevis grab hook is not for lifting, only for lashing or pulling

SKU: 1.05.02

Overview
Contact Us

US type Clevis Grab Hook

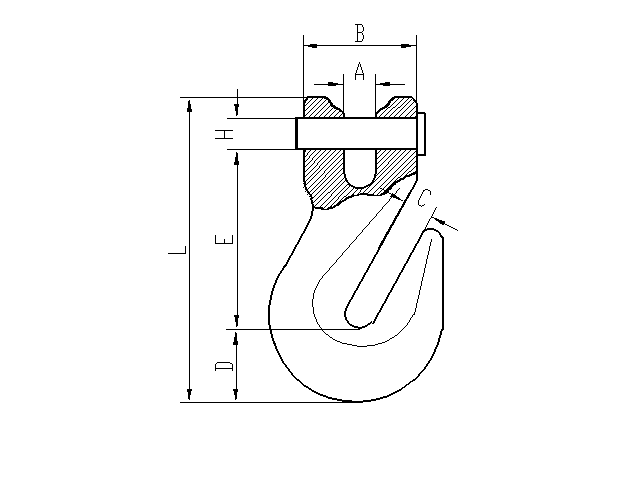

Stock no.	WLL(t)	BL(lbs)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	L(mm)	H(mm)	Weight(kg)
HS1050201	1.5	14000	9	27	8.2	19	44.7	78.5	9.3	0.17
HS1050202	2	18800	11.5	32	11	25	54.1	96.5	10.3	0.3
HS1050203	3.15	28400	12.5	39	12.5	28.3	67.2	114.5	11.6	0.5
HS1050204	3.75	35000	16.5	44	13.5	33.5	70	125.4	14.2	0.67
HS1050205	5.3	48000	18.5	48	16.5	38	81.6	145	15.8	1
HS1050206	7	63200	22.5	58.7	19	45	102.6	177	18.8	1.5
HS1050207	11	98800	24	66.5	24	54	118.1	207.5	25.5	3.3
