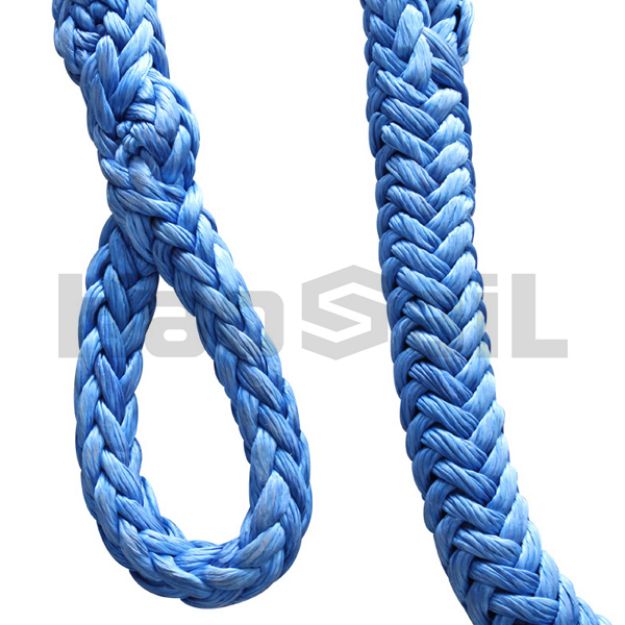

ULTRA HIGH MOLECULAR WEIGHT POLYETHYLENE FIBER ROPE （UHMWPE）

Structure: 8/12 Strand
Color: Blue / Orange / Yellow
Made of HMPE fiber, through special treatment,very high break strength and light weight,break strength is 1.5 times higher than same size wire rope but weight is super light, around 1/8 of same size wire rope .
Specific Gravity:0.97g/cm3
Melting Point: 145°C
Breaking Elongation: ＜ 4%
Abrasion Resistance: Very Good
Chemical Resistance; Very Good
UV Resistance; Very Good
Water Absorption:0%
Wet-dry Strength Ratio: 100%
Bespoke diameter and length is available

SKU: 5.03.01

ULTRA HIGH MOLECULAR WEIGHT POLYETHYLENE FIBER ROPE （UHMWPE）
Stock no.	Size (mm)	Circ. (mm)	Weight		BS (kN)
Stock no.	Size (mm)	Circ. (mm)	G/M	Kg/220m	Unsplice	Splice
HS5030101	6	18.8	23	5.1	40	36
HS5030102	8	25.1	40	8.8	69	62
HS5030103	10	31.4	61	13.4	105	95
HS5030104	12	37.7	87	19.1	150	135
HS5030105	14	44	117	25.7	200	180
HS5030106	16	50.2	151	33.2	255	230
HS5030107	18	56.5	190	41.8	315	285
HS5030108	20	62.8	232	51	380	340
HS5030109	22	69.1	281	61.8	450	405
HS5030110	24	75.4	331	72.8	520	470
HS5030111	26	81.6	384	84.5	600	540
HS5030112	28	87.9	445	97.9	685	615
HS5030113	30	94.2	506	111.3	775	700
HS5030114	32	100.5	575	126.5	865	780
HS5030115	36	113	720	158.4	1070	965
HS5030116	40	125.6	881	193.8	1285	1155
HS5030117	44	138.2	1060	233.2	1525	1375
HS5030118	48	150.7	1250	275	1775	1600
HS5030119	52	163.3	1460	321.2	2045	1840
HS5030120	56	175.8	1690	371.8	2330	2095
HS5030121	60	188.4	1930	424.6	2635	2370
HS5030122	64	201	2200	484	2950	2655
HS5030123	68	213.5	2480	545.6	3285	2955
HS5030124	72	226.1	2780	611.6	3635	3270
HS5030125	76	238.6	3090	679.8	4000	3600
HS5030126	80	251.2	3430	754.6	4375	3940
HS5030127	88	276.3	4170	917.4	5180	4660
HS5030128	96	301.4	4970	1093.4	6040	5435
HS5030129	100	314	5151	1133.2	6495	5845
HS5030130	104	326.6	5555	1222.1	6960	6265
HS5030131	108	339.1	5973	1314.1	7440	6695
HS5030132	112	351.7	6404	1408.9	7935	7140
HS5030133	116	364.2	6854	1507.9	8440	7595
HS5030134	120	376.8	7316	1609.5	8960	8065

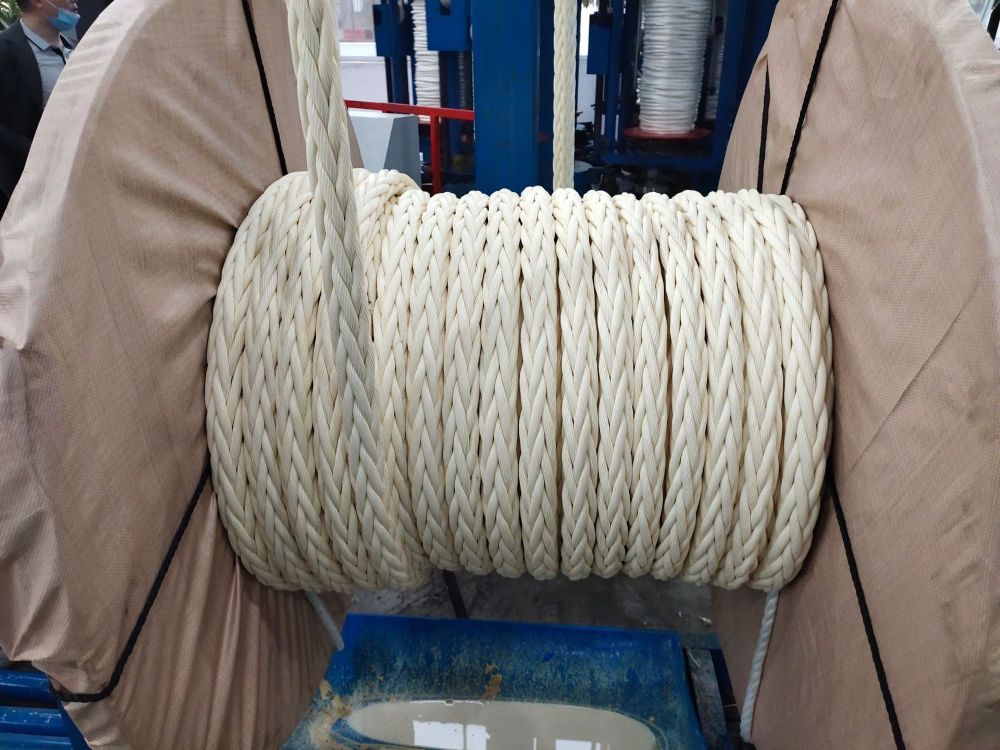

Workshop Production
