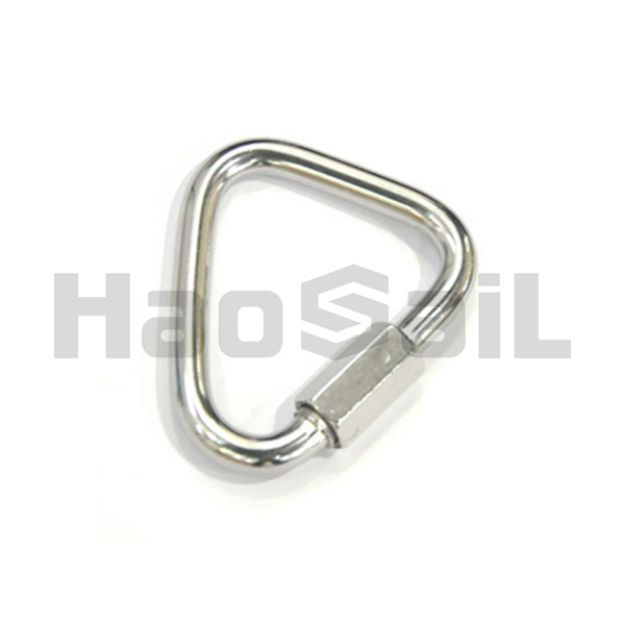

Stainless Steel Delta Shaped Quick Link

•Material: Stainless steel 304 or 316
•Production: Cold forming
•Surface treatment: Polishing/Zinc plated •Safety factor: 4:1

SKU: 4.07.04

Stainless Steel Delta Shaped Quick Link

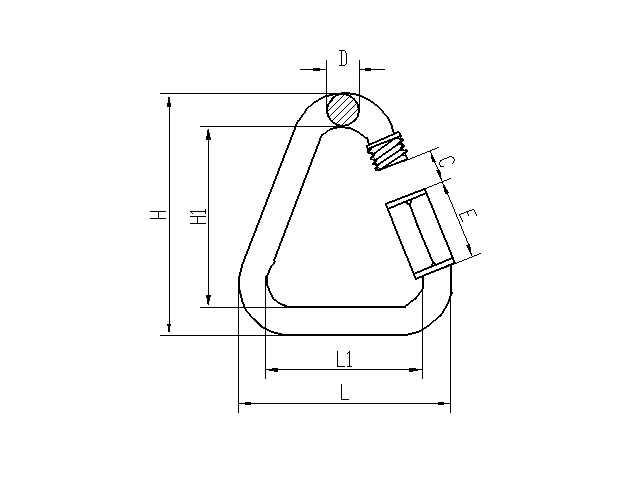

Stock no.	Size mm	H mm	H1 mm	C mm	D mm	L mm	L1 mm	E mm	SWL lbs	Net weight 100pcs kg
SF-509	3.5	36	29	5	3.5	31.5	24	11	200	0.92
SF-509	4	40	32	5.5	4	35.5	27.5	12.5	250	1.35
SF-509	5	48	38	6.5	5	40	30	16	330	2.3
SF-509	6	56	44	7.5	6	47	35	19	550	4.02
SF-509	8	73	57	10.5	8	56	40	24	1210	8.97
SF-509	10	87	67	12	10	66	46	29	1320	15.52
SF-509	12	104	80	15	12	75	51	33	2425	28.75
