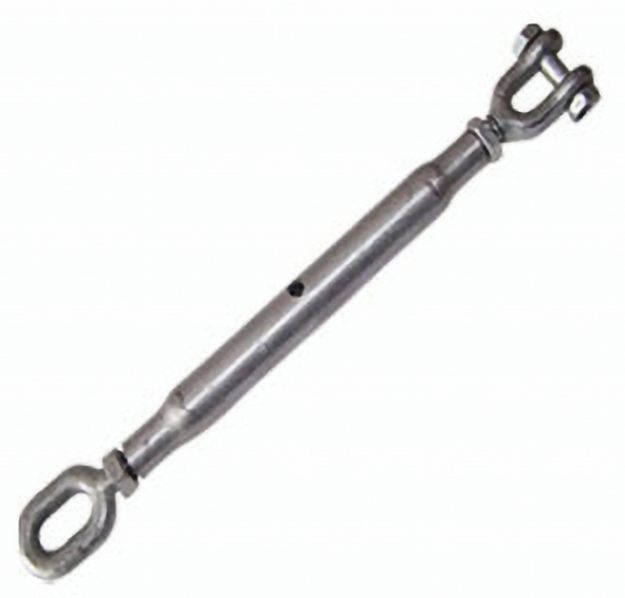

Rigging Screw

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.22

Rigging Screw
Stock no.	A Thread	B	C	E	G	H	I	J	K	L	M	M1	N	O	Suitable for WLL	Weight
Stock no.	A Thread	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Suitable for WLL	kg
HS2022201	M6	102	17	6	14	8	6	6	9	4	21	14	176	254	100kgs	0.1
HS2022202	M8	127	17	6	20	9	8	6	9	6	21	18	203	305	150kgs	0.2
HS2022203	M10	152	21	8	25	11	8	8	12	8	19	18	235	349	380kgs	0.4
HS2022204	M12	229	27	9	38	14	11	9	19	10	35	24	334	527	500kgs	1.0
HS2022205	M16	229	27	11	40	18	14	9	22	12	51	32	375	556	760kgs	1.4
HS2022206	M20	229	34	11	50	22	16	11	22	16	48	36	385	554	1.2t	2.0
HS2022207	M22	305	42	13	48	22	17	13	25	20	60	40	465	704	1.7t	3.4
HS2022208	M24	356	42	13	51	25	19	14	32	22	63	48	528	812	2.2t	4.4
HS2022209	M27	356	48	13	57	28	20	14	32	22	70	52	542	817	2.8t	5.5
HS2022210	M33	381	48	14	64	34	25	19	38	24	76	64	602	884	3.8t	8.0
HS2022211	M39	407	60	16	75	38	27	19	47	33	90	64	644	934	5.2t	12.0
HS2022212	1 3/4"	407	76	17	85	40	30	24	48	36	105	80	670	942	7.2t	17.0
HS2022213	2"	407	76	19	92	44	37	25	51	42	121	92	739	993	10t	24.0
