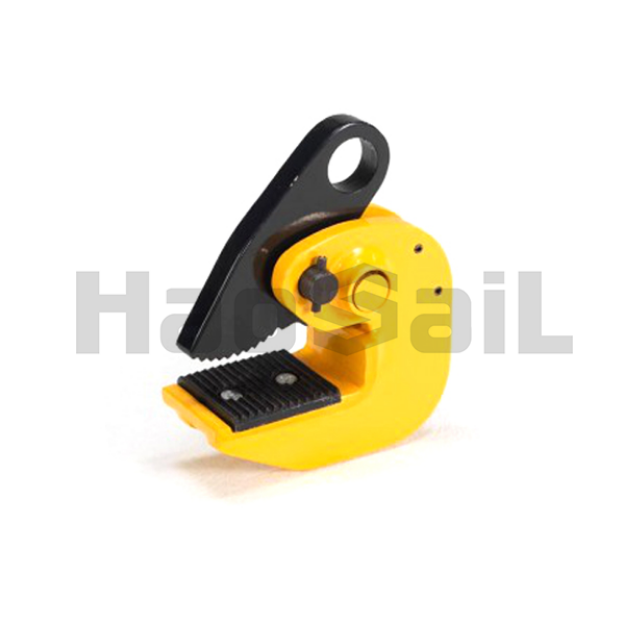

Picture of HSPPD-Horizontal Plate Clamp

HSPPD-Horizontal Plate Clamp

•Material:High quality carbon steel
•Working load limit(WLL): 0.8-30t
•Used for lifting and transporting of thick steel plate and profiled bar in horizontal position
•The screw jaw of the body can be changed through the safety releasing button
•The working load limite is the max load that the clamp are autorized to support when used in pairs with a lift angle of 60°.
•In lifting operations, the clamps should be used in pairs or multiples
•Collision with hung articles is forbidden during the hoisting
SKU: 3.01.03
HSPPD- Horizontal Plate Clamp
Stock no.ModelWLL
(t)		Jaw opening
(mm)		Weight
(kg)
HS3010301PPDO.80.8 0-252.5
HS3010302PPD11.0 0-303.5
HS3010303PPD1.61.6 0-304
HS3010304PPD22.0 0-405
HS3010305PPD3.23.2 0-456
HS3010306PPD44.0 0-506.5
HS3010307PPD55.0 0-557.5
HS3010308PPD66.0 0-6510.5
HS3010309PPD66.0 0-13022
HS3010310PPD88.0 0-13022
HS3010311PPD1010.0 0-14033
HS3010312PPD1616.0 50-15050
HS3010313PPD3030.0 100-270108
