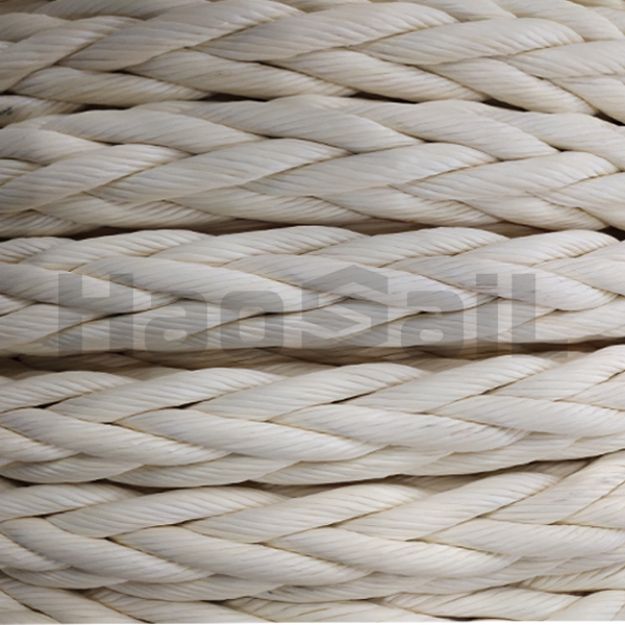

POLYAMID ROPE / NYLON ROPE

Structure: 8/12 Strand
Made of polyamid fiber, the rope has good shock-absorption capacities and widely use in ship towing
Specific Gravity:1.14g/cm3
Melting Point: 215°C
Breaking Elongation: 15%-28%
Abrasion Resistance: Very Good
Chemical Resistance; Very Good
UV Resistance; Very Good
Water Absorption:4%
Wet-dry Strength Ratio: Dry ＞ Wet
Bespoke diameter and length is available

SKU: 5.03.02

POLYAMID ROPE / Nylon Rope
Stock no.	Size	Circ.	Weight		BS (kN)
Stock no.	(mm)	(mm)	G/M	kg/220m	Unsplice	Splice	Unsplice	Splice
HS5030201	12	38	90	20	30	27	31.5	28.4
HS5030202	16	50	160	35	53	47.7	56	50.4
HS5030203	20	63	250	55	80	72	85	76.5
HS5030204	24	75	360	79	112	101	118	106
HS5030205	28	88	490	108	150	135	160	144
HS5030206	30	94	560	123	170	153	180	162
HS5030207	32	101	640	141	200	178	212	191
HS5030208	36	113	810	178	250	225	265	239
HS5030209	40	126	1000	220	300	270	315	284
HS5030210	44	138	1210	266	355	320	375	338
HS5030211	48	151	1440	317	425	383	450	405
HS5030212	52	163	1700	374	500	450	530	477
HS5030213	56	176	1970	433	560	504	600	540
HS5030214	60	188	2260	497	630	567	670	603
HS5030215	64	201	2570	565	710	639	750	675
HS5030216	72	226	3250	715	900	810	950	855
HS5030217	80	251	4010	882	1120	1008	1180	1062
HS5030218	88	276	4860	1069	1320	1188	1400	1260
HS5030219	96	302	5780	1271	1600	1440	1700	1530
HS5030220	104	327	6780	1491	1800	1620	1900	1710
HS5030221	112	352	7870	1731	2120	1908	2240	2016
HS5030222	120	377	9030	1987	2360	2124	2500	2250
HS5030223	128	402	10100	2222	2650	2385	2800	2520
HS5030224	136	427	11600	2552	3000	2700	3150	2835
HS5030225	144	452	13000	2860	3350	3015	3550	3195
HS5030226	160	503	16100	3542	4250	3825	4500	4050
