Pipe Turnbuckle with Toggle & Swage Stud

•Material: Stainless steel 304 or 316
•Production technology: Drop Forging
•Surface treatment: Self color/Polishing
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 4.02.17

Overview
Contact Us

Pipe Turnbuckle with Toggle & Swage Stud

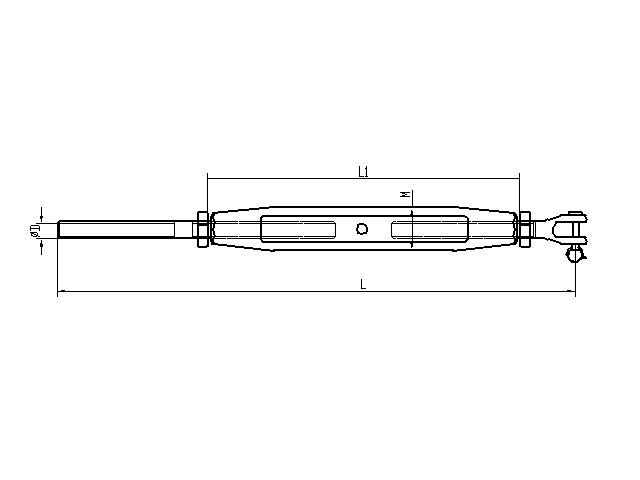

Stock no.	Size(mm)	L（mm）	L1(mm)	M(thread)	φD(mm)	DiaφCable(mm)	BL(lbs)
HS4021701	2.5	155	80	M5	5.5	2.5	600
HS4021702	3	172	90	M6	6.3	3	1000
HS4021703	4	171	90	M6	7.5	4	1000
HS4021704	4	210	110	M8	7.5	4	1400
HS4021705	5	216	110	M8	9.1	5	1400
HS4021706	5	246	120	M10	9.1	5	2200
HS4021707	6	296	150	M12	12.5	6	4000
HS4021708	7	328	165	M14	14.3	7	5400
HS4021709	8	310	150	M12	16.1	8	4000
HS4021710	8	386	190	M16	16.1	8	6500
HS4021711	10	422	210	M20	17.8	10	8500
HS4021712	12	416	190	M16	17.8	10	6500
