Pipe Turnbuckle with Jaw & Swage Stud

•Material: Stainless steel 304 or 316
•Production technology: Drop Forging
•Surface treatment: Self color/Polishing
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 4.02.16

Overview
Contact Us

Pipe Turnbuckle with Jaw & Swage Stud

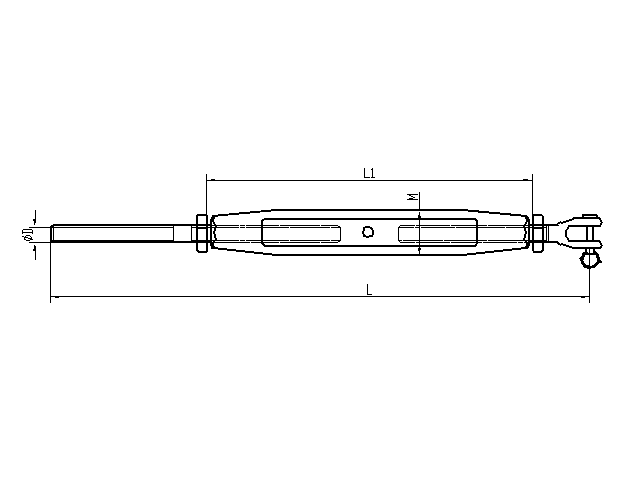

Stock no.	Size(mm)	L（mm）	L1(mm)	M(thread)	φD(mm)	DiaφCable（mm）	BL(lbs)
HS4021601	2.5	155	80	M5	5.5	2.5	600
HS4021602	3	172	90	M6	6.3	3.0	1000
HS4021603	4	171	90	M6	7.5	4.0	1000
HS4021604	4	210	110	M8	7.5	4.0	1400
HS4021605	5	216	110	M8	9.1	5.0	1400
HS4021606	5	246	120	M10	9.1	5.0	2200
HS4021607	6	296	150	M12	12.5	6.0	4000
HS4021608	7	328	165	M14	14.3	7.0	5400
HS4021609	8	310	150	M12	16.1	8.0	4000
HS4021610	8	386	190	M16	16.1	8.0	6500
HS4021611	10	422	210	M20	17.8	10.0	8500
HS4021612	12	416	190	M16	17.8	10.0	6500
