HSJP3 Magnetic Lifting Clamp

•This magnetic lifting clamp uses high performance permanent magnetic material, with high absorption ability
•The improved magnetic circuit design and whole-body steel structure make the magnetic lifting clamp smaller and lighter
•The unique magnetic circuit design makes the remanence almost zero
•The V type groove design on the bottom of the magnetic lifting clamp allows it to lift corresponding round steel and steel plate
•This magnetic lifting clamp has high safety factor, the max breakaway force is 3.5 times of the nominal lifting power
SKU: 3.04.02

HSJP3 Magnetic Lifting Clamp
Stock no.TypeWLL
kg
Max.breakaway force
 kg

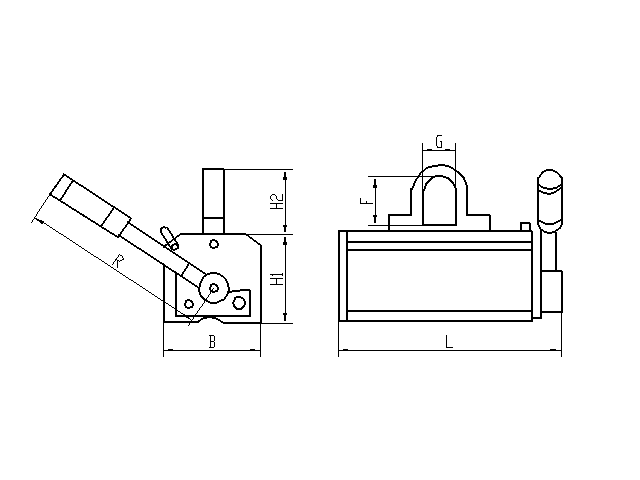

Dimension( mm)Gross weight
 kg
LBH1H2RFG
HS3040201JG3-100kg10035013762664512032214
HS3040202JG3-300kg3001050199909568175503811
HS3040203JG3-600kg600210026311510778225584222
HS3040204JG3-1000kg1000350030315014088266645042
HS3040205JG3-1500kg15005250348166156102336765664
HS3040206JG3-2000kg20007000394175170102343765680
