JIS1169 Eye Nut

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

Manufacturer: forged

SKU: 2.04.04

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

JIS1169 Eye Nut
Stock no.	Size (mm)	WLL (kn)	Weight (kg)	Dimensions（mm）

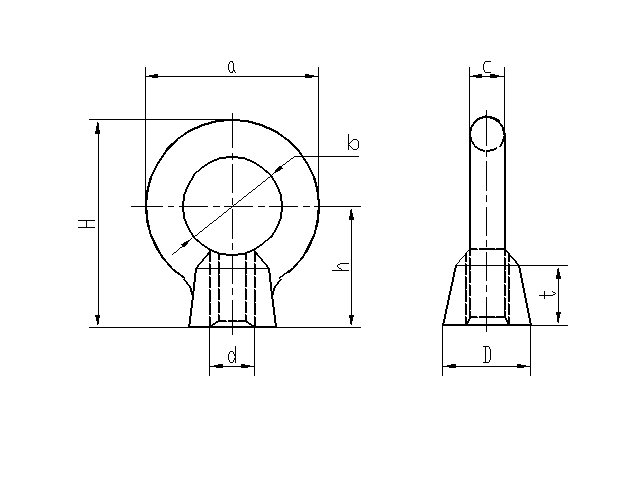

Stock no.	Size (mm)	WLL (kn)	Weight (kg)	a	b	c	d	t	h	H	D
HS02040401	M6	0.59	0.016	25.00	14.00	6.30	6.30	11.00	20.00	32.50	13.00
HS02040402	M8	0.80	0.026	32.60	20.00	6.30	8.50	12.00	23.00	39.30	16.00
HS02040403	M10	1.50	0.064	41.00	25.00	8.00	10.60	15.00	28.00	48.50	20.00
HS02040404	M12	2.20	0.125	50.00	30.00	10.00	12.50	19.00	36.00	61.00	25.00
HS02040405	M16	4.50	0.223	60.00	35.00	12.50	17.00	23.00	42.00	72.00	30.00
HS02040406	M20	6.30	0.390	72.00	40.00	16.00	21.20	28.00	50.00	86.00	35.00
HS02040407	M24	9.50	0.850	90.00	50.00	20.00	25.00	38.00	66.00	111.00	45.00
HS02040408	M30	15.00	1.750	110.00	60.00	25.00	31.50	46.00	80.00	135.00	60.00
HS02040409	M36	23.00	3.000	133.00	70.00	31.50	37.50	55.00	95.00	161.50	70.00
HS02040410	M42	34.00	4.650	151.00	80.00	35.50	45.00	64.00	109.00	184.50	80.00
HS02040411	M48	45.00	6.600	170.00	90.00	40.00	50.00	73.00	123.00	208.00	90.00
HS02040412	M64	90.00	13.800	210.00	110.00	50.00	67.00	90.00	151.00	256.00	110.00
