JIS1168 Eye Bolt

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.04.03

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

JIS1168 Eye Bolt

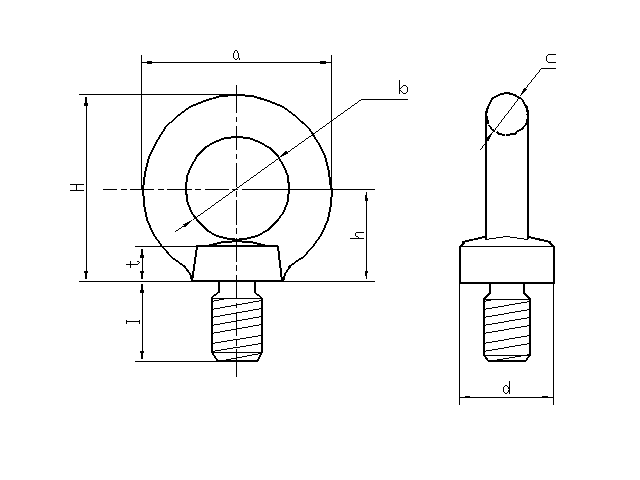

Stock no.	Size (mm)	WLL (kn)	Weight (kg)	Dimensions（mm）
Stock no.	Size (mm)	WLL (kn)	Weight (kg)	a	b	c	d	t	h	H	I
HS02040301	M6	0.588	0.016	26	16	5.8	13.5	6	14	27	14
HS02040302	M8	0.785	0.03	32.6	20	6.3	16	5	17	33.3	15
HS02040303	M10	1.47	0.06	41	25	8	20	7	21	41.5	18
HS02040304	M12	2.16	0.12	50	30	10	25	9	26	51	22
HS02040305	M16	4.41	0.22	60	35	12.5	30	11	30	60	27
HS02040306	M20	6.18	0.39	72	40	16	35	13	35	71	30
HS02040307	M24	9.32	0.8	90	50	20	45	18	45	90	38
HS02040308	M30	14.7	1.56	110	60	25	60	22	55	110	45
HS02040309	M36	22.6	2.9	133	70	31.5	70	26	65	131.5	55
HS02040310	M42	33	4.4	151	80	35.15	80	30	75	150.5	65
HS02040311	M48	44.1	6.1	170	90	40	90	35	85	170	70
HS02040312	M64	88.3	11.5	210	110	90	110	42	105	210	90
