JIS Type Frame Turnbuckle with Eye & Hook

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.18

Overview
Contact Us

JIS Type Frame Turnbuckle with Eye & Hook

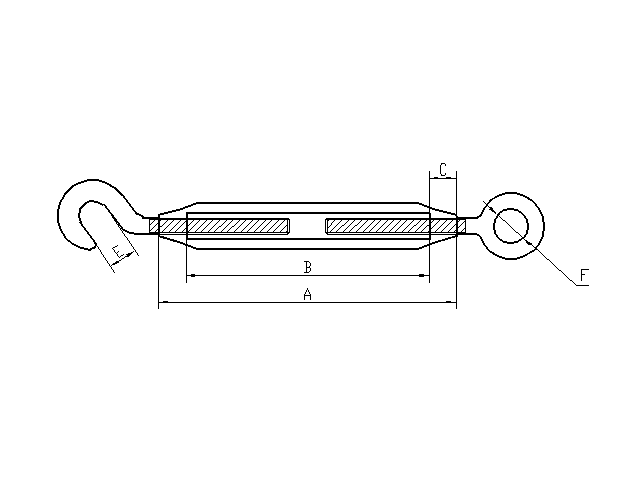

Stock no.	Size (D)		A		B	C	E	F	T.L	Weight
	Size (D)		A		B	C	E	F	T.L	Weight
	mm	in	mm	in	mm	mm	mm	mm	t	lbs
HS2021701	6	1/4	100	4	78	11	9	10	0.04	0.25
HS2021702	8	5/16	125	5	100	12.5	9	12	0.08	0.48
HS2021703	9	3/8	150	6	120	12.5	11	16	0.15	0.65
HS2021704	12	1/2	200	8	164	18	16	20	0.35	1.29
HS2021705	16	5/8	250	10	202	21.5	19	22	0.7	2.32
HS2021706	19	3/4	300	12	250	25	20	28	1	3.93
HS2021707	22	7/8	325	13	269	28	21	33	1.5	5.69
HS2021708	25	1	350	14	285	32.5	26	35	2	8.32
HS2021709	32	1-1/4	400	16	310	45	34	36	3	16.6
HS2021710	38	1-1/2	450	18	350	55	35	40	4	28.2
