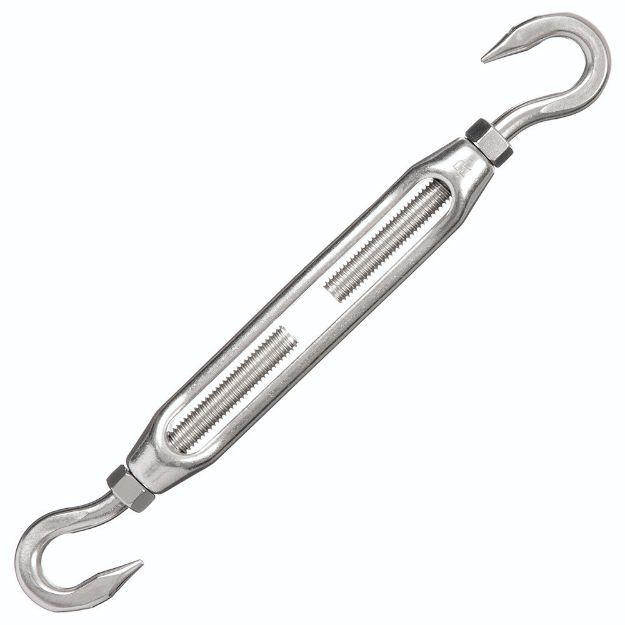

JIS Frame Type Turnbuckle with Hook & Hook

•Material: Stainless steel 304 or 316
•Production technology: Drop Forging
•Surface treatment: Self color/Polishing
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 4.02.12

Overview
Contact Us

JIS Frame Type Turnbuckle with Hook & Hook
Stock no.	Size(mm)	L（mm）	L1(mm)	B(mm)	F(mm)	M(thread)	WLL(kg)
HS4021201	5	130	70	9	8	M5	80
HS4021202	6	160	100	9	10	M6	110
HS4021203	8	200	125	10	12	M8	210
HS4021204	10	245	150	11	16	M10	340
HS4021205	12	300	200	14	20	M12	650
HS4021206	16	400	250	18	22	M16	1300
HS4021207	20	480	300	20	28	M20	2500
HS4021208	22	520	325	22	33	M22	3930
HS4021209	25	560	350	26	35	M25	5890
