JIS 1169 Stainless Steel Eye Nut

•Material: Stainless steel 304 or 316
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

Manufacturer: forged

SKU: 4.05.04

Overview
Contact Us

JIS 1169 Stainless Steel Eye Nut

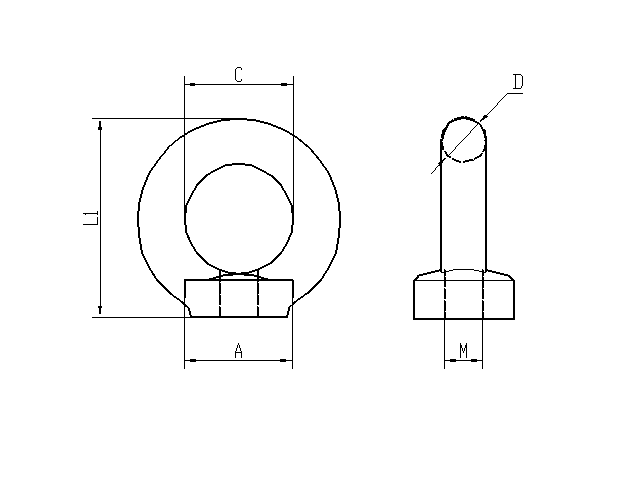

Stock no.	Size(mm/inch)	A(mm)	C(mm)	D(mm)	L1(mm)	M(thread)	BL(lbs)
HS4050401	6	14	16	5	30	M6	1100
HS4050402	8	16	20	6.2	39.3	M8	1300
HS4050403	10	20	25	8	48	M10	2600
HS4050404	12	25	30	10	61	M12	3500
HS4050405	16	32	35	12.5	72	M16	8000
HS4050406	20	37	40	16	86	M20	10500
HS4050407	24	44	50	20	111	M24	14550
HS4050408	30	60	60	25	135	M30	20000
HS4050409	1/4"	14	16	5	30	1/4"	1200
HS4050410	5/16"	16	20	6.2	39.3	5/16"	1300
HS4050411	3/8"	20	25	8	48	3/8"	2600
HS4050412	1/2"	25	30	10	61	1/2"	3500
HS4050413	5/8"	32	35	12.5	72	5/8"	8000
HS4050414	3/4"	37	40	16	86	3/4"	10500
HS4050415	1"	44	50	20	111	1"	14450
