JIS 1168 Stainless Steel Eye Bolt

•Material: Stainless steel 304 or 316
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 4.05.03

Overview
Contact Us

JIS 1168 Stainless Steel Eye Bolt

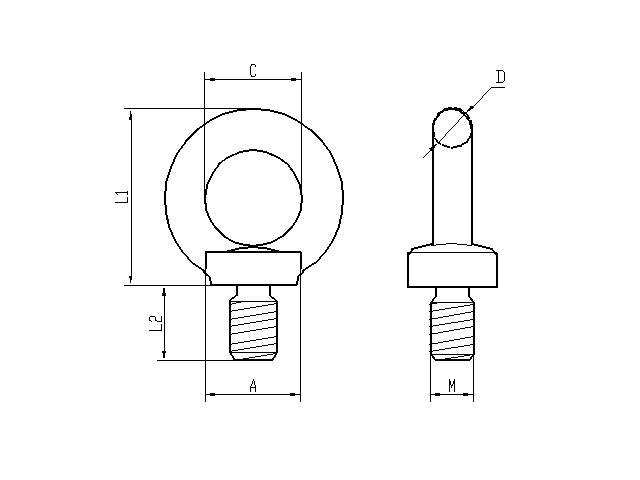

Stock no.	Size(mm/inch)	A(mm)	C(mm)	D(mm)	L1(mm)	L2(mm)	M(thread)	BL(lbs)
HS4050301	6	14	16	5	30	10	M6	1100
HS4050302	8	16	20	6.2	33	15	M8	1800
HS4050303	10	20	25	8	41	18	M10	2600
HS4050304	12	25	30	10	51	22	M12	3500
HS4050305	16	32	35	12.5	60	27	M16	8000
HS4050306	20	37	40	15.5	69	30	M20	10500
HS4050307	24	44	50	20	87	38	M24	14550
HS4050308	30	60	60	25	105	45	M30	-
HS4050309	1/4"	14	16	5	30	10	1/4"	1100
HS4050310	5/16"	16	20	6.2	33	15	5/16"	1800
HS4050311	3/8"	20	25	8	41	18	3/8"	2600
HS4050312	1/2"	25	30	10	51	22	1/2"	3400
HS4050313	5/8"	32	35	12.5	60	27	5/8"	8000
HS4050314	3/4"	37	40	15.5	69	30	3/4"	10500
HS4050315	1"	44	50	20	87	38	1"	13000
