HSZ-HS636 Series Manual Chain Block

•Working load limit(WLL):0.5-20t(and 30/50t for heavy duty type)
•This block can be used in 360 degrees
•This block is equipped with axletree and can reduce hand pulling force
•Special designed top hook can backout easily and can be installed with trolley directly
•This block is equipped with premium grade alloy load chain and zinc plated hand chain as standard
•This block is equipped with drop forged and expertly heat treated hooks for great strength and long wearing life
•The hooks are fitted with robust safety latches and rotate 360 degrees
•This block can carry overload limiter

SKU: 3.02.03

HSZ-HS636 Series Manual Chain Block
Stock no.	Model	Capacity (t)	Standard lift (m)	Running test load (kn)	Effort required to lift rated load (n)	Diameter of hand chain (mm)	Strands of load chain	Diameter of load chain (mm)	Dimensions (mm)					Net weight (kg)	Extra weight per metre of extra lift (kg)

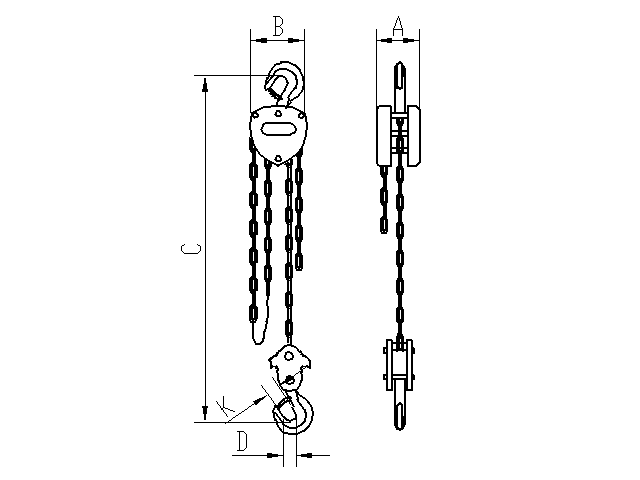

Stock no.	Model	Capacity (t)	Standard lift (m)	Running test load (kn)	Effort required to lift rated load (n)	Diameter of hand chain (mm)	Strands of load chain	Diameter of load chain (mm)	A	B	C	D	K	Net weight (kg)	Extra weight per metre of extra lift (kg)
HS3020301	U636-0.5t	0.5	2.5	7.5	250	5*23.6	1	5*15	132	148	345	35	23	11	1.5
HS3020302	U636-1.0t	1	2.5	15	285	5*23.6	1	6*18	132	148	376	35	23	12.2	1.8
HS3020303	U636-1.5t	1.5	2.5	22.5	380	5*23.6	1	7.1/8*24	173	196	442	45	33	16.5	2.4
HS3020304	U636-2.0t	2	2.5	30	340	5*23.6	1	8*24	175	210	470	50	35	19.5	2.4
HS3020305	U636-3.0t	3	3	45	370	5*23.6	2	7.1/8*24	205	255	548	55	39	24	3.7
HS3020306	U636-5.0t	5	3	75	370	5*23.6	2	9/10*30	189	280	688	65	45	41.1	5.4
HS3020307	U636-10t	10	3	150	380	5*23.6	4	10*30	189	463	765	75	54	78	9.8
HS3020308	U636-15t	15	3	225	380	5*23.6	6	10*30	200	718	900	95	71	135	14.7
HS3020309	U636-20t	20	3	300	390*2	5*23.6	8	10*30	200	840	950	106	82	192	19.6
HS3020310	U636-30t	30	3	45	390*2	5*23.6	12	10*30	350	700	1020	110	85	300	28.5
HS3020311	U636-50t	50	3	75	390*2	5*23.6	22	10*30	430	930	1920	130	130	1120	50.5
