HSH-HS622 Series Lever Block

•Working load limit(WLL):0.75-9t
•This kind of block is Germany type
•High quality materials ensure light weight without infringing reliability
•Low weight, small mounting sizes and small lever forces at full load
•Hand lever operates with little effort due to optional gear ratio
•This block is equipped with premium grade alloy load chain
•This block is equipped with chromed hand wheel
•This block is equipped with drop forged and expertly heat treated hooks for great strength and long wearing life
•Different lifting length is available as per requirement
•Load limiter is available at extra cost
SKU: 3.02.09

HSH-HS622 Series Lever Block
Stock no.ModelCapacity
(t)
Standard
 lift
(m)
Running test
 load
(kn)
Effort required
to lift rated load
(n)
Strands of load chainDiameter
of hand chain
(mm)

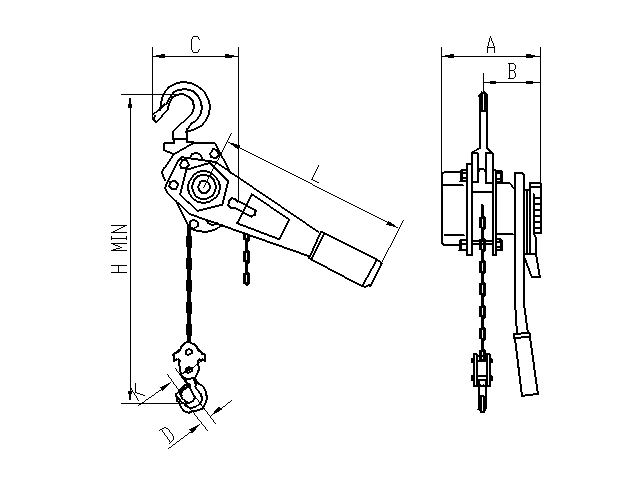

Dimensions
(mm)
Net weight
(kg)
Extra weight
per metre of extra lift
(kg)
ABCDHLK
HS3020901U622-0.75t0.751.5111401614890136403202552770.8
HS3020902U622-1t11.5151401614890136403202552770.8
HS3020903U622-1.5t1.51.522.522017.1172981604438036534101.1
HS3020904U622-2t21.5252401817298160463803653611.81.4
HS3020905U622-3t31.537.5320110200115180504803653817.52.2
HS3020906U622-6t61.575340210200115235646003654828.54.4
HS3020907U622-9t91.5112.53603102001153308570036557456.6
