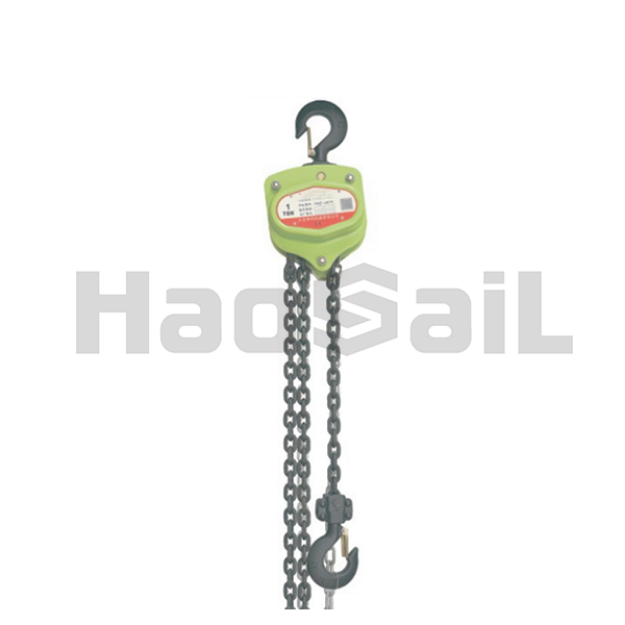

HSZ-HS619 Series Manual Chain Block

•Working load limit(WLL):0.5-20t(and 30/50t for heavy duty type)
•This kind of block is European type
•Heavy duty and compact design of the block meet all pertinent world standards
•This block is with reliable disc braking system
•This block is equipped with premium grade alloy load chain and zinc plated hand chain as standard
•This block is equipped with drop forged and expertly heat treated hooks for great strength and long wearing life
•This block has the function of overload protection

SKU: 3.02.05

HSZ-HS619 Series Manual Chain Block
Stock no.	Model	Capacity (t)	Standard lift (m)	Running test load (kn)	Effort required to lift rated load (n)	Diameter of hand chain (mm)	Strands of load chain	Diameter of load chain (mm)	Dimensions (mm)					Net weight (kg)	Extra weight per metre of extra lift (kg)
Stock no.	Model	Capacity (t)	Standard lift (m)	Running test load (kn)	Effort required to lift rated load (n)	Diameter of hand chain (mm)	Strands of load chain	Diameter of load chain (mm)	A	B	C	D	K	Net weight (kg)	Extra weight per metre of extra lift (kg)
HS3020501	U619-05t	0.5	3	7.5	225	5*23.6	1	5	132	152	315	34	27	8.5	1.3
HS3020502	U619-1t	1	3	15	300	5*23.6	1	6	152	157	355	38	27	11	1.6
HS3020503	U619-1.5t	1.5	3	22.5	310	5*23.6	1	7.1/ 8	152	180	375	48	36	13.5/14.5	2.0
HS3020504	U619-2t	2	3	30	300	5*23.6	2	6	152	170	405	48	36	14.5	2.3
HS3020505	U619-3t	3	3	45	350	5*23.6	2	7.1/8	152	207	500	50	38	20.5/23	3.2/3.7
HS3020506	U619-3t	3	3	45	350	5*23.6	1	10	181	253	636	64	48	32	3.2
HS3020507	U619-5t	5	3	62.5	400	5*23.6	2	9/10	189	267	680	57	48	39.5	4.6/5.3
HS3020508	U619-7.5t	7.5	3	112.5	415	5*23.6	3	10	189	380	650	72	47	44	7.5
HS3020509	U619-10t	10	3	150	415	5*23.6	4	10	189	380	750	80	54	65	9.4
HS3020510	U619-15t	15	3	225	420	5*23.6	6	10	194	400	880	85	58	102	14
HS3020511	U619-20t	20	3	300	450*2	5*23.6	8	10	224	440	940	106	70	156	19.3
HS3020512	U619-30t	30	3	450	450*2	5*23.6	12	10	330	680	1000	110	85	225	28.3
HS3020513	U619-50t	50	3	750	450*2	5*23.6	22	10	410	900	1950	130	130	1085	50
HS3020514	U619-75t	75	3	1125	450*2	5*23.6	30	10	570	900	2100	180	160	1600	68
