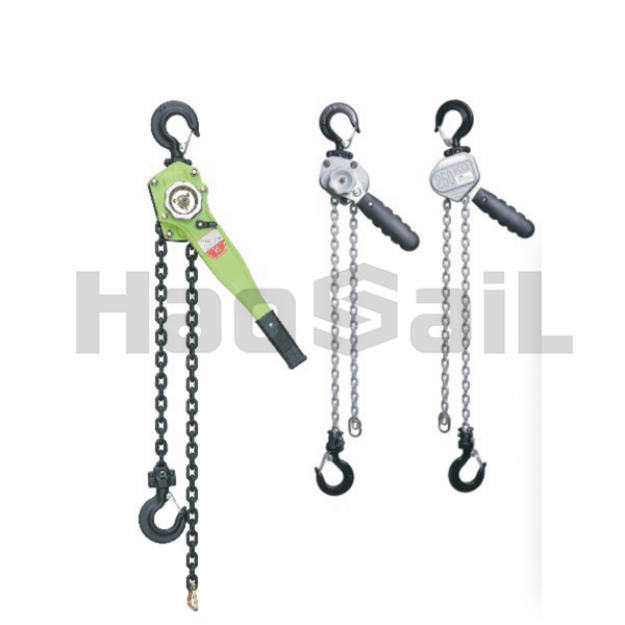

HSH-HS619 Series Lever Block

•Working load limit(WLL):0.25-9t(0.25-0.5t for Aluminium alloy type)
•This kind of block is Germany free falling type
•High quality materials ensure light weight without infringing reliability
•Low weight, small mounting sizes and small lever forces at full load
•Hand lever operates with little effort due to optional gear ratio
•This block is equipped with premium grade alloy load chain
•This block is equipped with chromed hand wheel
•This block is equipped with drop forged and expertly heat treated hooks for great strength and long wearing life
•Different lifting length is available as per requirement
•Load limiter is available at extra cost

SKU: 3.02.07

HSH-HS619 Series Lever Block

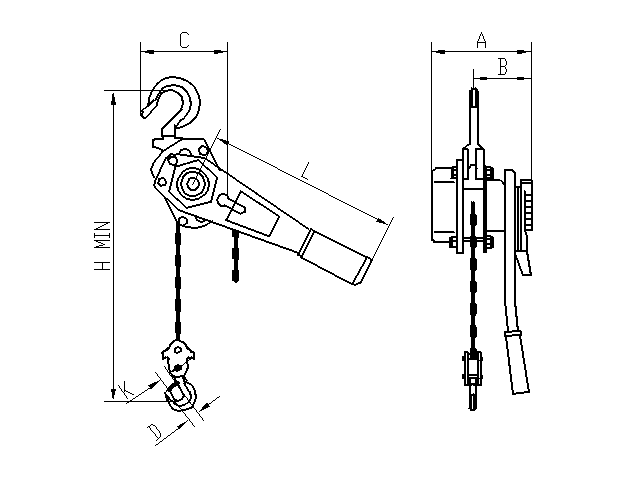

Stock no.	Model	Capacity (t)	Standard lift (m)	Running test load (kn)	Effort required to lift rated load (n)	Strands of load chain	Diameter of hand chain (mm)	Dimensions (mm)							Net weight (kg)	Extra weight per metre of extra lift (kg)
Stock no.	Model	Capacity (t)	Standard lift (m)	Running test load (kn)	Effort required to lift rated load (n)	Strands of load chain	Diameter of hand chain (mm)	A	B	C	D	H	L	K	Net weight (kg)	Extra weight per metre of extra lift (kg)
HS3020701	U619-0.25t	0.25	1.5	3.75	120	1	4	100	65	75	35	240	160	25	2.3	0.35
HS3020702	U619-0.5t	0.5	1.5	7.5	240	1	4	100	65	75	35	240	160	25	2.3	0.35
HS3020703	U619-0.75t	0.75	1.5	11	140	1	6	148	90	136	40	325	280	34	7	0.8
HS3020704	U619-1t	1	1.5	15	140	1	6	148	90	136	40	325	280	34	7	1.4
HS3020705	U619-1.5t	1.5	1.5	22	220	1	8	172	98	160	45	380	410	38	11	1.4
HS3020706	U619-2t	2	1.5	25	240	1	8	172	98	160	45	380	410	38	11.8	1.4
HS3020707	U619-3t	3	1.5	37.5	320	1	10	200	115	180	58	480	410	48	17.5	2.2
HS3020708	U619-6t	6	1.5	75	340	2	10	200	115	235	64	620	410	52	28.5	4.4
HS3020709	U619-9t	9	1.5	112.5	360	3	10	200	115	320	85	700	410	58	45	6.6
