When we visited customers in Australia in 2023, we found that many customers used and sold Pipe Thimbles, which are usually used for small and medium-sized ships. The following is our product parameters, welcome to inquire.

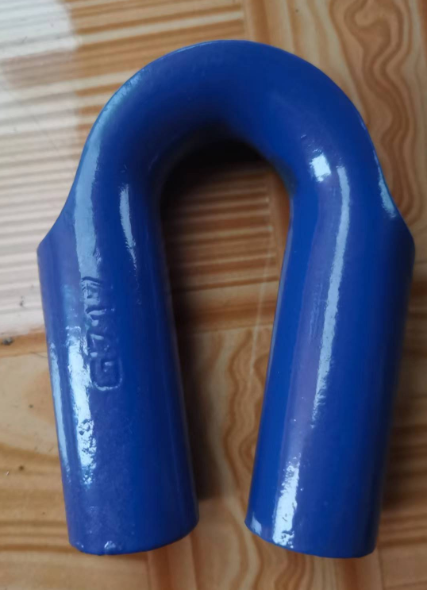

1. Blue Pipe Thimbles

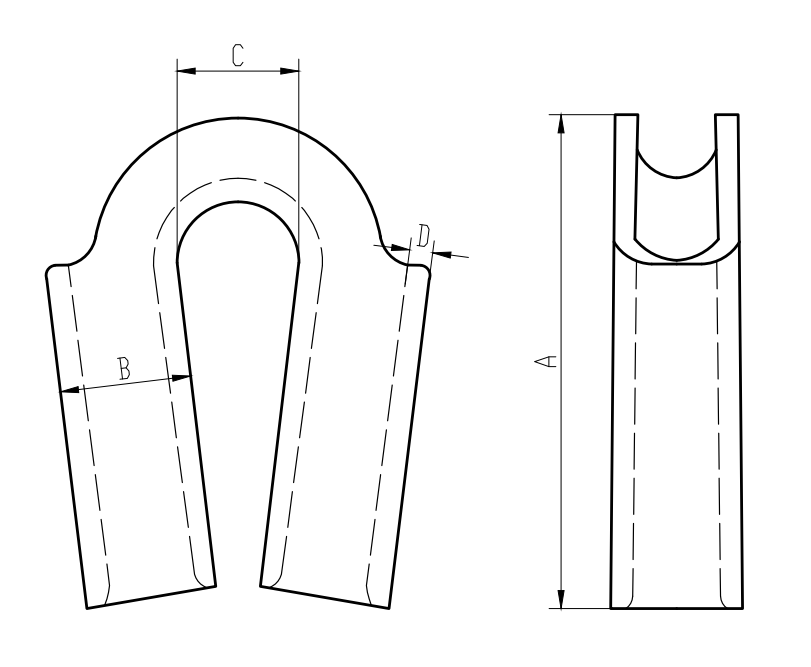

| No. | A(mm) | B(mm) | C(mm) | D(mm) | Weight(Kg) | For wire max.(mm) |
| G712 | 90 | 20 | 23 | 4 | 0.25 | 10 |
| G715 | 110 | 25 | 27 | 5 | 0.43 | 12 |
| G717 | 115 | 25 | 27 | 4 | 0.5 | 14 |
| G719 | 120 | 29 | 32 | 5 | 0.65 | 16 |
| G722 | 138 | 32 | 35 | 5 | 1 | 18 |
| G725 | 180 | 38 | 45 | 6.3 | 1.4 | 22 |
| G728 | 180 | 42 | 45 | 7 | 1.75 | 24 |
| G730 | 198 | 44 | 47 | 7 | 2.1 | 26 |
| G735 | 220 | 49 | 60 | 7 | 2.7 | 32 |
| G740 | 235 | 54 | 65 | 7 | 3.35 | 36 |
| G745 | 255 | 59 | 70 | 7 | 4 | 38 |
| G750 | 275 | 64 | 75 | 7 | 4.8 | 44 |
| G755 | 300 | 69 | 85 | 7 | 5.6 | 48 |
| G760 | 310 | 75 | 88 | 7 | 5.8 | 52 |

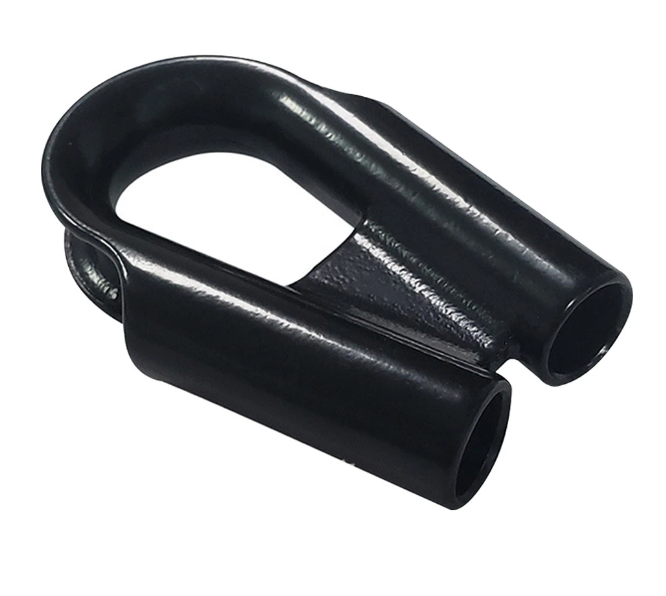

2. Pipe Thimbles with Gusset
| No. | A(mm) | B(mm) | C(mm) | D(mm) | F(mm) | Weight(Kg) | For wire max.(mm) |
| G712 | 90 | 20 | 23 | 4 | 29 | 0.3 | 10 |
| G715 | 110 | 25 | 27 | 5 | 42 | 0.48 | 12 |
| G717 | 115 | 25 | 27 | 4 | 52 | 0.55 | 14 |
| G719 | 120 | 29 | 32 | 5 | 55 | 0.7 | 16 |
| G722 | 138 | 32 | 35 | 5 | 59 | 1.08 | 18 |
| G725 | 180 | 38 | 45 | 6.3 | 89 | 1.5 | 22 |
| G728 | 180 | 42 | 45 | 7 | 75 | 1.9 | 24 |
| G730 | 198 | 44 | 47 | 7 | 94 | 2.25 | 26 |
| G735 | 220 | 49 | 60 | 7 | 99 | 2.9 | 32 |
| G740 | 235 | 54 | 65 | 7 | 106 | 3.6 | 36 |
| G745 | 255 | 59 | 70 | 7 | 111 | 4.3 | 38 |
| G750 | 275 | 64 | 75 | 7 | 116 | 5.2 | 44 |
| G755 | 300 | 69 | 85 | 7 | 127 | 6.05 | 48 |
| G760 | 310 | 75 | 88 | 7 | 131 | 6.26 | 52 |
