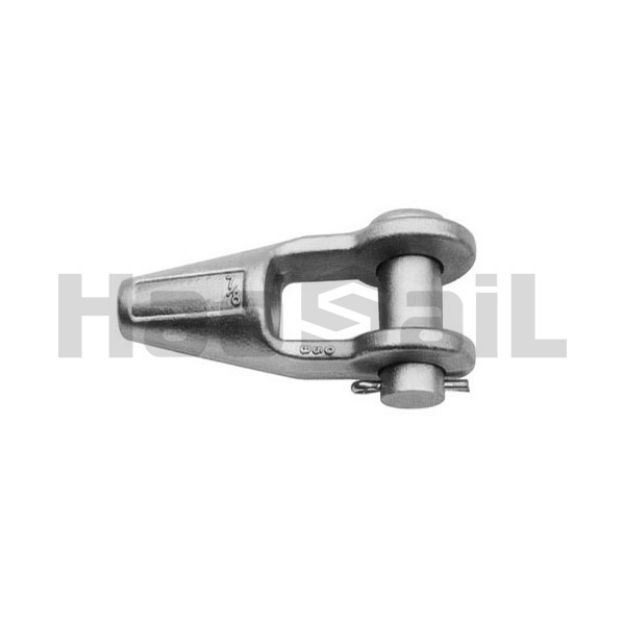

Grooved Open Spelter Sockets Sm-416

•Material: Forged alloy steel to 1-1/2”, and cast alloy steel from 1-5/8” to 4”
•Production method: Forging/Casting
•Surface treatment: Self-color/Electric galvanized/Hot dip galvanized •The spelter socket terminations have an efficiency rating of 100% of the nominal strength of wire rope.
•The sockets are recommended to use with 6*7,6*19 or 6*37, IPS OR XIP,XXIP(EIP),RRL,FC,OR IWRC wire rope.
•Closed Grooved Sockets meet the performance requirements of Federal Specification RR-S-550D,Type A, except for those provisions required by the contractor.

SKU: 2.06.13

Grooved Open Spelter Sockets Sm-416
Stock no.	For size (in)	Weight (lbs)	Dimension(in)

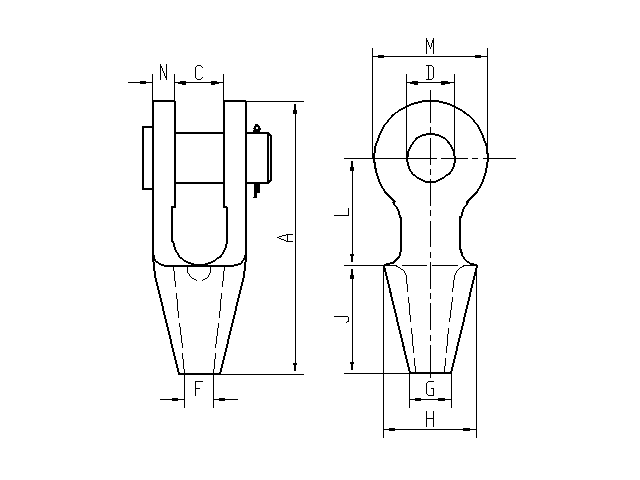

Stock no.	For size (in)	Weight (lbs)	A	C	D	F	G	H	J	L	M	N
HS2061301	1/4	1.10	4.56	0.75	0.69	0.38	0.69	1.56	2.25	1.56	1.31	0.31
HS2061302	5/16-3/8	1.30	4.84	0.81	0.81	0.50	0.81	1.69	2.25	1.75	1.50	0.44
HS2061303	7/16-1/2	2.25	5.56	1.00	1.00	0.56	0.94	1.88	2.50	2.00	1.88	0.50
HS2061304	9/16-5/8	3.60	6.75	1.25	1.19	0.69	1.13	2.25	3.00	2.50	2.25	0.56
HS2061305	3/4	5.80	7.94	1.50	1.38	0.81	1.25	2.62	3.50	3.00	2.62	0.62
HS2061306	7/8	9.65	9.25	1.75	1.63	0.94	1.50	3.25	4.00	3.50	3.13	0.80
HS2061307	1	15.50	10.56	2.00	2.00	1.13	1.75	3.75	4.50	4.00	3.75	0.88
HS2061308	11/8	21.50	11.81	2.25	2.25	1.25	2.00	4.12	5.00	4.62	4.12	1.00
HS2061309	1 1/4-1 3/8	31.00	13.19	2.50	2.50	1.50	2.25	4.75	5.50	5.00	4.75	1.13
HS2061310	11/2	47.25	15.12	3.00	2.75	1.63	2.75	5.25	6.00	6.00	5.38	1.19
HS2061311	15/8	55.00	16.25	3.00	3.00	1.75	3.00	5.50	6.50	6.50	5.75	1.31
HS2061312	1 3/4-1 7/8	82.00	18.25	3.50	3.50	2.00	3.13	6.38	7.50	7.00	6.50	1.56
HS2061313	2-21/8	129.00	21.50	4.00	3.75	2.25	3.75	7.38	8.50	9.00	7.00	1.81
HS2061314	2 1/4-2 3/8	167.00	23.50	4.50	4.25	2.50	4.00	8.25	9.00	10.00	7.75	2.13
HS2061315	2 1/2-2 5/8	252.00	25.50	5.00	4.75	2.88	4.50	9.25	9.75	10.75	8.50	2.38
HS2061316	2 3/4-2 7/8	315.00	27.25	5.25	5.00	3.12	4.88	10.50	11.00	11.00	9.00	2.88
HS2061317	3-31/8	380.00	29.00	5.75	5.25	3.38	5.25	11.12	12.00	11.25	9.50	3.00
HS2061318	3 1/4-3 3/8	434.00	30.88	6.25	5.50	3.62	5.75	11.88	13.00	11.75	10.00	3.12
HS2061319	3 1/2-3 5/8	563.00	33.25	6.75	6.00	3.88	6.50	12.38	14.00	12.50	10.75	3.25
HS2061320	3 3/4-4	783.00	36.25	7.50	7.00	4.25	7.25	13.62	15.00	13.50	12.50	3.50
