Grooved Closed Spelter Sockets Sm-417

•Material: Forged alloy steel to 1-1/2”, and cast alloy steel from 1-5/8” to 4”
•Production method: Forging/Casting
•Surface treatment: Self-color/Electric galvanized/Hot dip galvanized •The spelter socket terminations have an efficiency rating of 100% of the nominal strength of wire rope.
•The sockets are recommended to use with 6*7,6*19 or 6*37, IPS OR XIP,XXIP(EIP),RRL,FC,OR IWRC wire rope.
•Closed Grooved Sockets meet the performance requirements of Federal Specification RR-S-550D,Type B, except for those provisions required by the contractor.

SKU: 2.06.15

Grooved Closed Spelter Sockets Sm-417
Stock no.	For size (in)	Weight lbs/pcs	Dimensione(in)

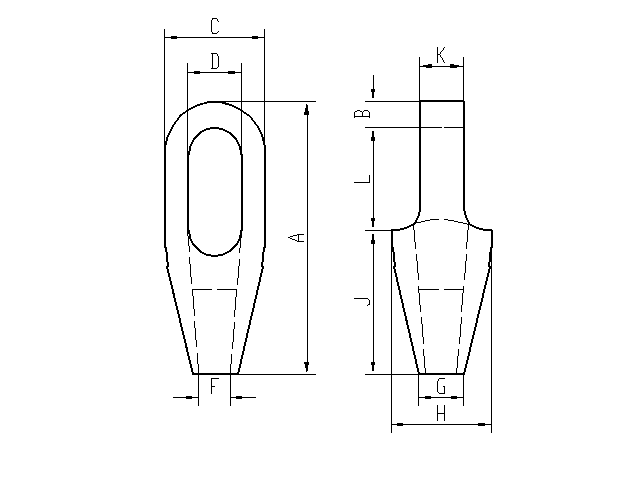

Stock no.	For size (in)	Weight lbs/pcs	A	B	C	D	F	G	H	J	K	L
HS2061501	1/4	0.5	4.5	0.5	1.5	0.88	0.38	0.69	1.56	2.25	0.5	1.75
HS2061502	5/16-3/8	0.75	4.88	0.62	1.69	0.97	0.5	0.81	1.69	2.25	0.69	2
HS2061503	7/16-1/2	1.5	5.44	0.69	2	1.16	0.56	0.94	1.88	2.5	0.88	2.25
HS2061504	9/16-5/8	2.5	6.31	0.81	2.63	1.41	0.69	1.12	2.38	3.0o	1	2.5
HS2061505	3/4	4.25	7.56	1.06	3	1.66	0.81	1.25	2.75	3.56	1.25	3
HS2061506	7/8	7.25	8.75	1.25	3.63	1.88	0.94	1.5	3.25	4	1.5	3.5
HS2061507	1	10.5	9.88	1.38	4.13	2.3	1.13	1.75	3.75	4.44	1.75	4
HS2061508	11/8	14.25	11	1.5	4.5	2.56	1.25	2	4.13	5	2	4.5
HS2061509	11/4-13/8	19.75	12.12	1.63	5.3	2.81	1.5	2.25	4.75	5.5	2.25	5
HS2061510	11/2	29.2	13.94	1.94	5.33	3.19	1.63	2.75	5.25	6	2.5	6
HS2061511	15/8	36	15.13	2.13	5.75	3.25	1.75	3	5.5	6.5	2.75	6.5
HS2061512	13/4-17/8	57.25	17.25	2.19	6.75	3.75	2	3.13	6.38	7.5	3	7.56
HS2061513	2-21/8	79	19.5	2.44	7.63	4.38	2.25	3.75	7.38	8.5	3.25	8.56
HS2061514	21/4-23/8	105	21.31	2.63	8.5	5	2.5	4	8.25	9.0o	3.63	9.5
HS2061515	21/2-25/8	140	23.5	3.12	9.5	5.5	2.88	4.5	9.25	9.75	4	10.62
HS2061516	23/4-27/8	220	25.38	3.12	10.75	6.25	3.12	4.88	10.19	11	4.88	11.25
HS2061517	3-31/8	276	27	3.25	11.5	6.75	3.38	5.25	11.5	12	5.25	11.75
HS2061518	31/4-33/8	313	29.25	4	12.25	7.25	3.62	5.75	12.25	13	5.75	12.25
HS2061519	31/2-35/8	400	31	4	13	7.75	3.88	6.5	13	14	6.25	13
HS2061520	33/4-4	542	33.25	4.25	14.25	8.5	4.25	7.25	14.25	15	7	14
