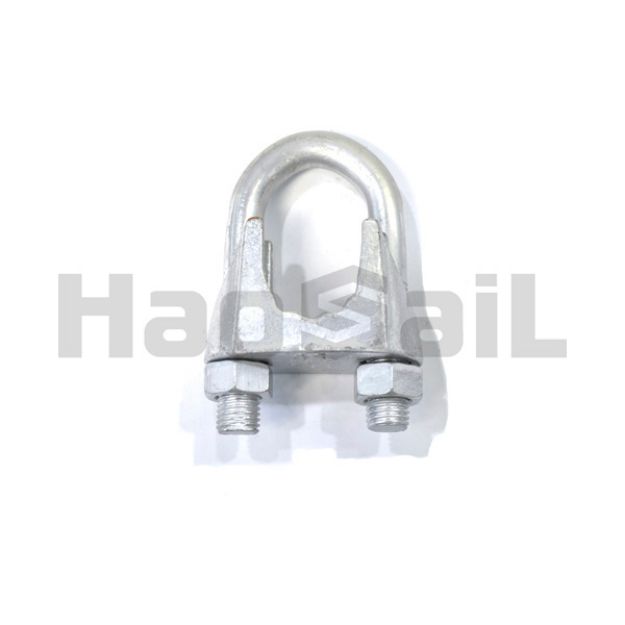

Galvanized Malleable Wire Rope Clips Type B

•Material: Malleable carbon steel
•Production technology: Casting
•Surface treatment: Self color/Electric Galvanized/Hot dip galvanized

SKU: 2.03.06

Galvanized Malleable Wire Rope Clips Type B

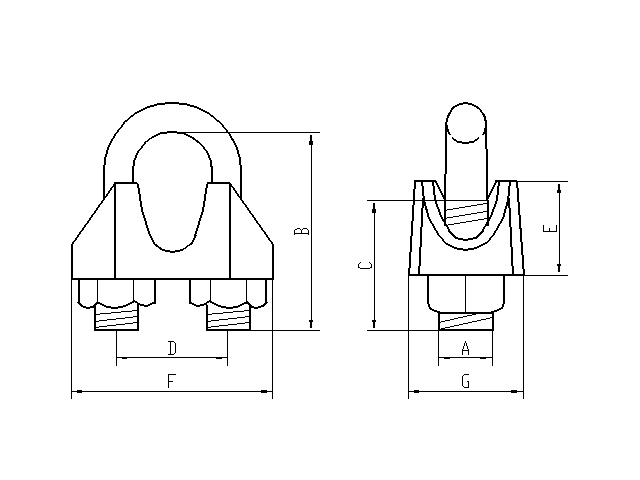

Stock no.	Size (mm)	Diemensions(mm)							Weight 100pcs (lbs)
Stock no.	Size (mm)	A	B	C	D	E	F	G	Weight 100pcs (lbs)
HS2030601	1/8	4	20	12	9	9.5	19	12	1.17
HS2030602	3/16	5	26	14	11	10.8	22	13.5	1.70
HS2030603	1/4	6	26	14	12.5	11.5	25	15.5	2.53
HS2030604	5/16	6	31	16	15.5	16	31	18	3.80
HS2030605	3/8	8	37	20	21	20	40	22	7.93
HS2030606	1/2	10	45	24	25	26	47	25	14.40
HS2030607	5/8	12	57	28	30	31	55	28	23.08
HS2030608	11/16	12	64	40	33	35	58	2835	26.80
HS2030609	3/4	16	71	34	36.5	36	65	31	44.30
HS2030610	7/8	16	77	38	40	43	72	36	57.10
HS2030611	1	20	88	44	45	48	80	40	88.43

Product tags

DIN1142 Malleable Wire Rope Clips
