Galvanized Malleable Wire Rope Clips Type A

•Material: Malleable carbon steel
•Production technology: Casting
•Surface treatment: Self color/Electric Galvanized/Hot dip galvanized

SKU: 2.03.05

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

Galvanized Malleable Wire Rope Clips Type A

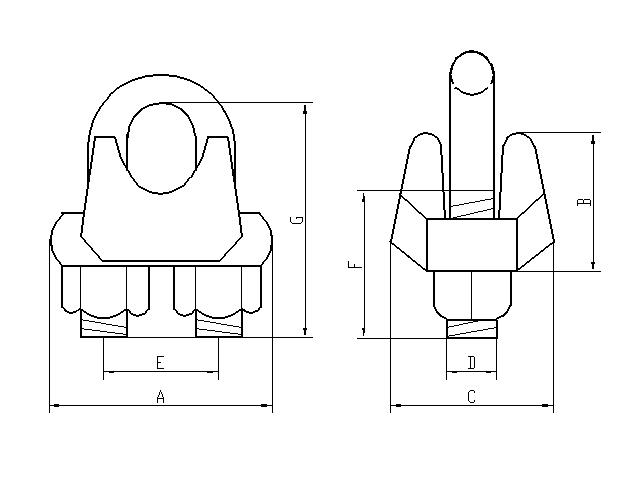

Stock no.	Size (mm)	Diemensions(mm)							Weight 100pcs (kg)
Stock no.	Size (mm)	A	B	C	D	E	F	G	Weight 100pcs (kg)
HS2030501	6	22.5	14	17	5	12	14	24.8	0.95
HS2030502	8	28	17	21	6	15	16	30.66	1.68
HS2030503	10	38	21	28	8	19	20	37.95	3.86
HS2030504	12	45	27	34	10	24	25	47.55	7.26
HS2030505	15	52	32	40	12	29	30	57.15	11.34
HS2030506	20	62	38	46.5	14	36	36	71.73	19.50
HS2030507	22	69	43	51.5	16	40	39	78.73	27.22
HS2030508	25	76	50	56	18	43	44	90.4	37.20
HS2030509	28	85	57	62	20	48	48	96.9	50.80
HS2030510	32	93	61	67	22	55	51	110.4	68.04
HS2030511	40	111	73	81	24	64	62	122.5	115.21
HS2030512	45	123	86	88	27	72	70	139.5	155.58
HS2030513	50	135	95	95	30	80	88	156	206.84
