G80 US Type Ratchet Load Binder

•Produced according to American standard
•The handle is forged
•Used with Grade 80 chain, and equipped with Grade 80 eye type grab hook with retaining pin, which is safe and anti falling off
•The load binder must not be used for lifting, only for binding
The ratchet type load binder is different from the lever type, the main difference between these two types is the method to tighten the binder. The Ratchet Load Binders attach either normal shortening Hooks or hooks with lock.
SKU: 1.04.05

G80 US Type Ratchet Load Binder
Stock no.Size
(in)
WLL
(lbs)
BL
(lbs)
Weight
(lbs)

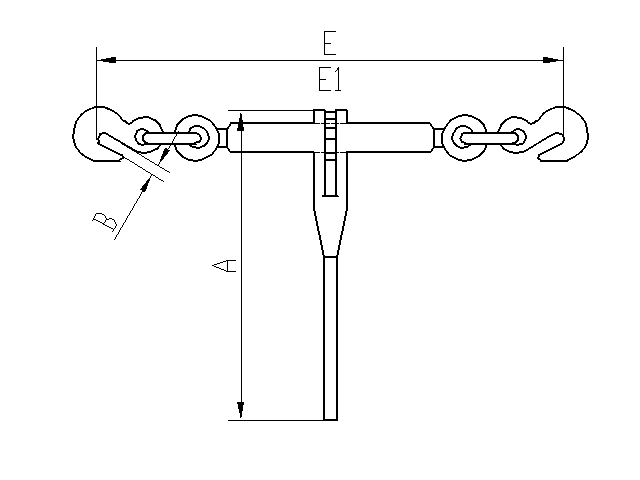

Dimensions(in)
ABEE1
HS10405015/16-3/871002130010.915.240.523.4229.72
HS10405023/8-1/2120003600012.6515.240.6524.1330.63
HS10405031/2-5/8160004800016.215.240.7327.1633.07
