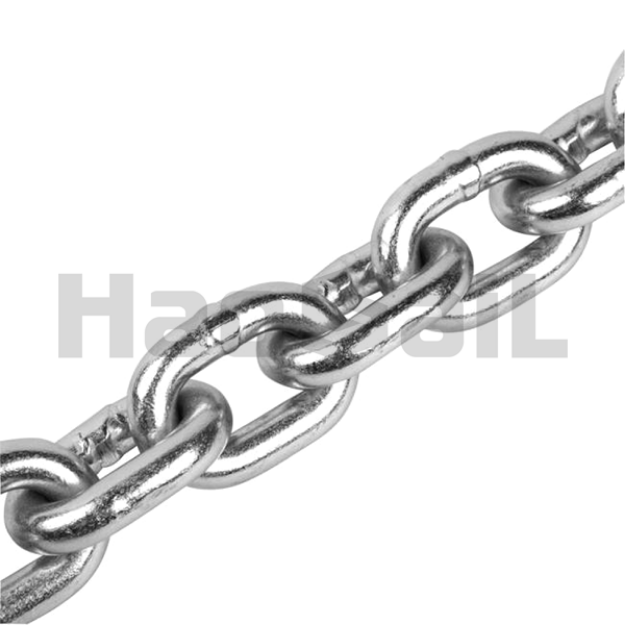

G80 Hoist Chain For Chain Block

*G80 hoist chain is made from high-strength alloy steel, providing excellent tensile strength and durability.
*Test certificates available upon request.
*Surface Treatment:galvanized.
SKU: 1.01.07

G80 Hoist Chain For Chain Block

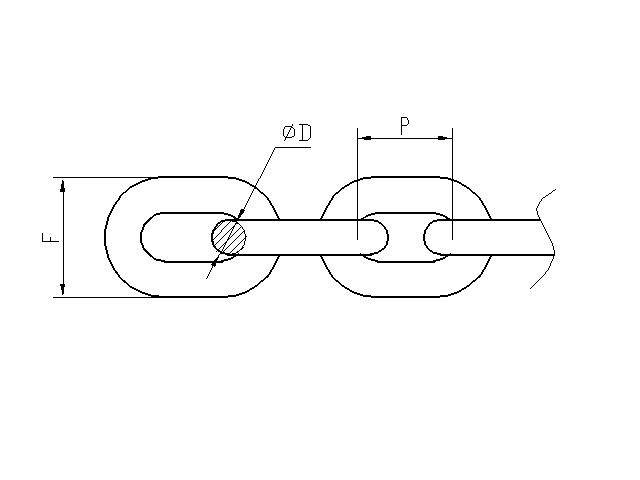

Stock no.Diameter φD
(mm)
Tolerance
(mm)
Pitch  p
(mm)
Outside width F
(mm)
Tolerance
 (mm)
Weight
(kg/m)
PL
(kn)
BL
min.(kn)
HS10107015.0 +0.1     -0.31517+0.380.55 1931.6
HS10107026.0 +0.12    -0.361820+0.450.79 2745.4
HS10107036.3 +0.13    -0.381921+0.480.86 3050.0
HS10107047.1 +0.14    -0.432123+0.541.10 3863.1
HS10107058.0 +0.16    -0.432426+0.61.38 4880.6
HS10107069.0 +0.18    -0.542730+0.681.78 61102.0
HS101070710.0 +0.2    -0.63033+0.752.17 76126.0
HS101070811.2 +0.4    -0.43435+0.852.68 79158.0

G80 hoist chain is specifically designed for use in chain blocks or chain hoists. It is a high-strength chain that is engineered to handle heavy lifting applications.

  1. High Strength: G80 hoist chain is made from high-strength alloy steel, providing excellent tensile strength and durability. It is specifically designed to withstand heavy loads and resist wear and fatigue during lifting operations.

  2. Load Capacity: G80 hoist chain has a specified working load limit (WLL) that indicates the maximum load it can safely handle. The load capacity of the chain depends on its size or nominal diameter.

  3. Surface Treatment: G80 hoist chains often undergo surface treatment processes such as heat treatment or galvanization to enhance their corrosion resistance and extend their service life. This helps protect the chains from environmental factors and maintain their integrity over time.

  4. Link Design: G80 hoist chains typically have a specific link design that is suitable for use with chain blocks or hoists. The links are usually compact and well-matched to the chain block components, ensuring smooth operation and reliable lifting.

  5. Compliance with Standards: G80 hoist chains for chain blocks are manufactured to meet or exceed industry standards and regulations. They are designed and tested to ensure they meet the required performance and safety criteria.
