G80 Eye Sling Hook with Latch

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The G80 Eye sling hook with latch is suitable for EN818-2 G80 chain
SKU: 1.02.10

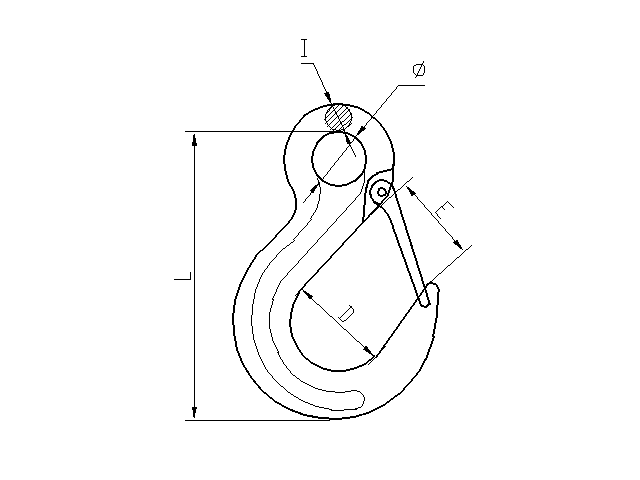

G80 Eye Sling Hook with Latch
Stock no.Size
(mm)
D
(mm)
E
 (mm)
L
 (mm)
I
 (mm)
φ
(mm)
WLL
(t)
Weight
(kg)
HS1021001632.4 25.0 107.0 9.0 20.0 1.120.30
HS10210027/837.2 30.0 131.5 10.5 25.0 20.55
HS10210031043.8 32.5 167.0 16.0 38.0 3.151.15
HS10210041355.0 37.0 213.0 19.5 42.5 5.32.32
HS10210051668.9 42.0 256.0 23.0 50.0 83.45
HS10210062087.4 51.0 305.0 27.0 61.0 12.56.60
HS10210072298.0 72.0 344.0 33.0 68.3 158.50
HS102100826112.5 85.0 392.5 34.5 63.0 21.213.00
HS102100932140106480.5378831.517.00
