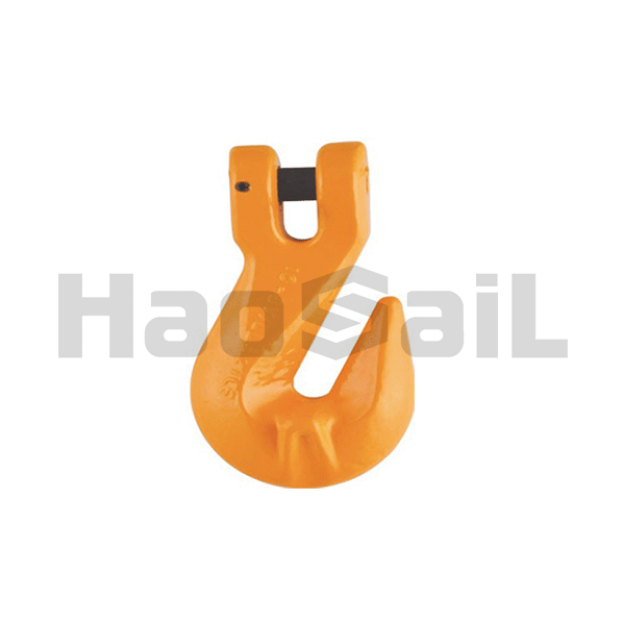

G80 Clevis Shortening Grab Hook

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G80 Clevis shortening grab hook is suitable for EN818-2 G80 chain

SKU: 1.02.17

Overview
Contact Us

G80 Clevis Shortening Grab Hook

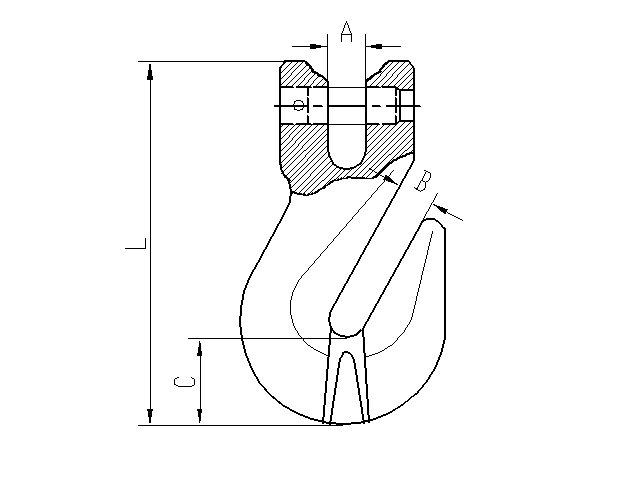

Stock no.	WLL(t)	BL(t)	A(mm)	B(mm)	C(mm)	L(mm)	Weight(kg)
HS1021701	1.12	4.48	8	8	16	74.5	0.25
HS1021702	2	8	10.5	11.5	17.8	89	0.32
HS1021703	3.2	12.6	13	13.5	30.5	126	0.73
HS1021704	5.4	21.2	15	16.5	43	163.5	1.6
HS1021705	8	32	18.5	20	45	183.5	2.8
HS1021706	12.5	50	23.8	24	57	219	5
HS1021707	15	60	27	27	68.5	254	6.3
HS1021708	21.2	84.8	30	30	77	309	14.5
